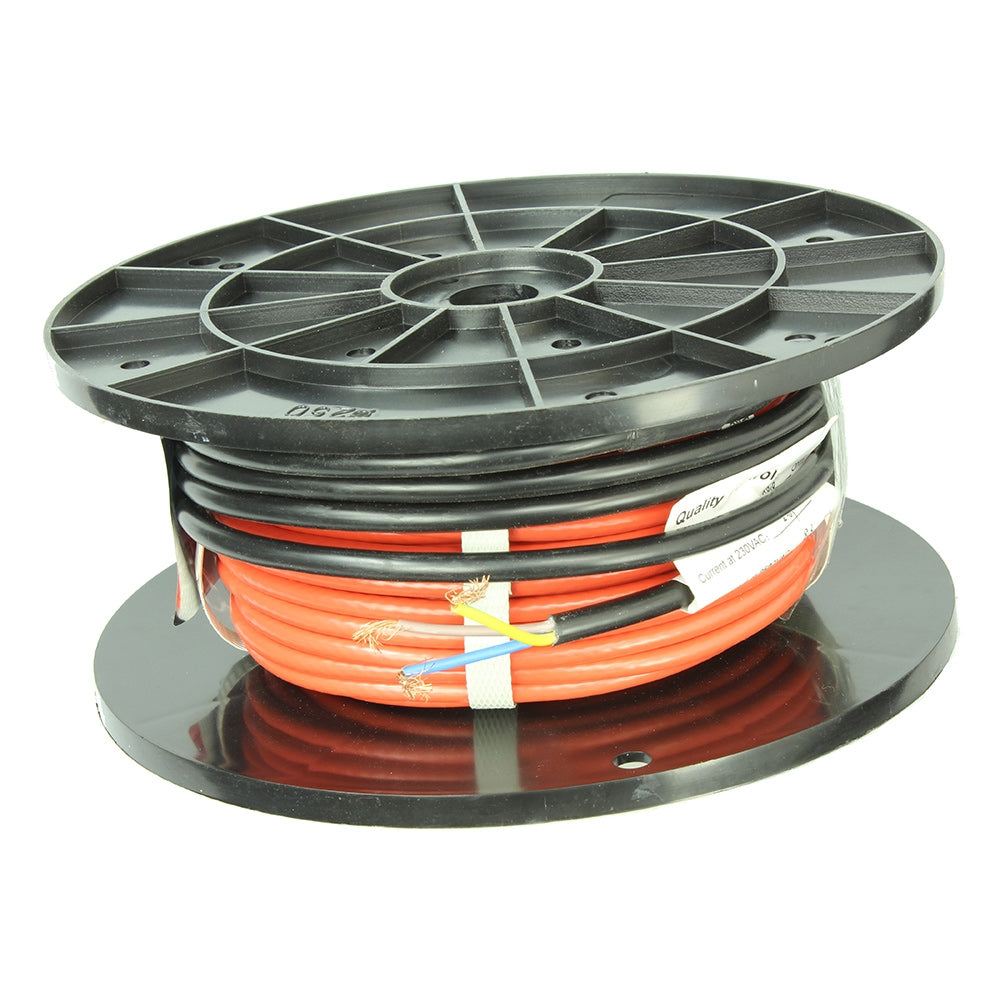

Radiant In Slab or In-Screed Professional Cable
Item Code: IS200
Couldn't load pickup availability
About the Product
Trade Warehouse Direct supply the full range of Radiant Australia under floor heating products, including the professional cable for in-slab or in-screed installations.
A perfect addition to any part of the house, a warm floor ensures a warm home on those chilly winter mornings.
- In-Screed: cable installed and then covered with screed. The 7mm cables are fully hidden away in the screed meaning that the tiler has a flat freshly screeded surface to work on
- In-Slab: cable tied to rebar using 200 centres (if 300 centre use the DV30 SL cables)
- IS CABLE = 200W per sqm
- DV30 CABLE = 30W per linear metre
This is a professional 'cable only', which comes loose on a drum and should be installed by a qualified builder or renovator.. A thermostat is required to control the floor-heating and can be purchased separately, we recommend the TS8100W in vertical or horizontal or the premium GTS range in vertical or horizontal
This is an popular solution for experienced fitters or when the area is an awkward shape.
All backed by long warranties, our price match promise and free delivery, we are the perfect place to buy these products for your new build or renovation.
Calculate your 'free floor' area only i.e. do not include area under sink, toilet, vanity etc. and 50mm away from walls in bathrooms 100mm away from walls in living/kitchen areas.
NOTE This product must be commissioned (connected) by a licensed electrical contractor & connected to a Thermostat & an RCD to comply with current AS/NZS 3000 wiring regulations.
10 year warranty on cable (subject to warranty registration)
Cable cannot be cut - purchase the correct cable length - see table below
Linear M Typical Floor Coverage - 'free floor' area only
- 10m: 0.9 - 1.1m2
- 12m: 1.2 - 1.4m2
- 15m: 1.5 - 1.9m2
- 20m: 2.0 - 2.4m2
- 25m: 2.5 - 2.9m2
- 30m: 3.0 - 3.5m2
- 35m: 3.5 - 3.9m2
- 40m: 4.0 - 4.5m2
- 45m: 4.5 - 4.9m2
- 50m: 5.0 - 5.9m2
- 60m: 6.0 - 6.9m2
- 70m: 7.0 - 7.9m2
- 80m: 8.0 - 9.9m2
- 100m: 10 - 11.9m2
