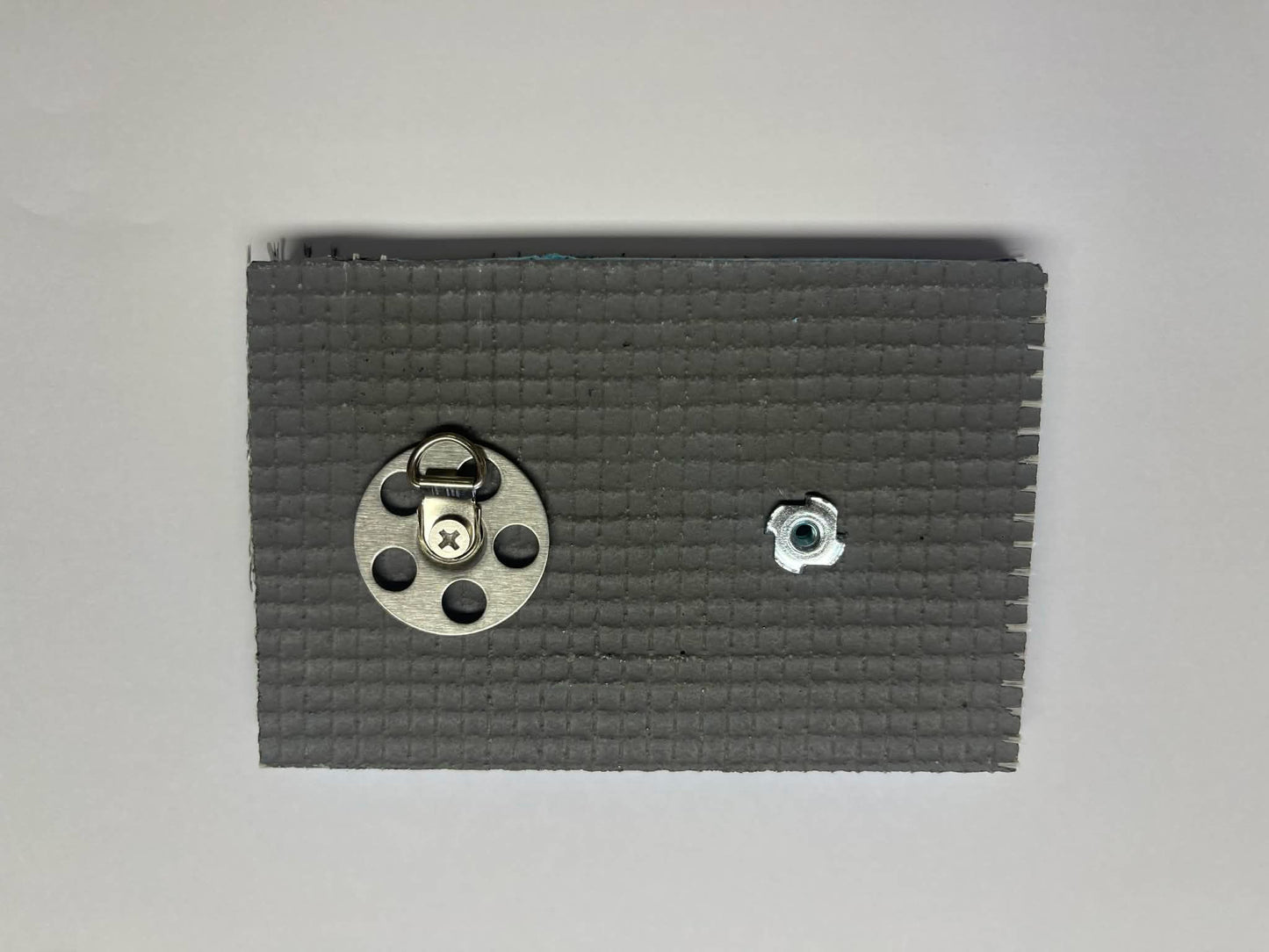

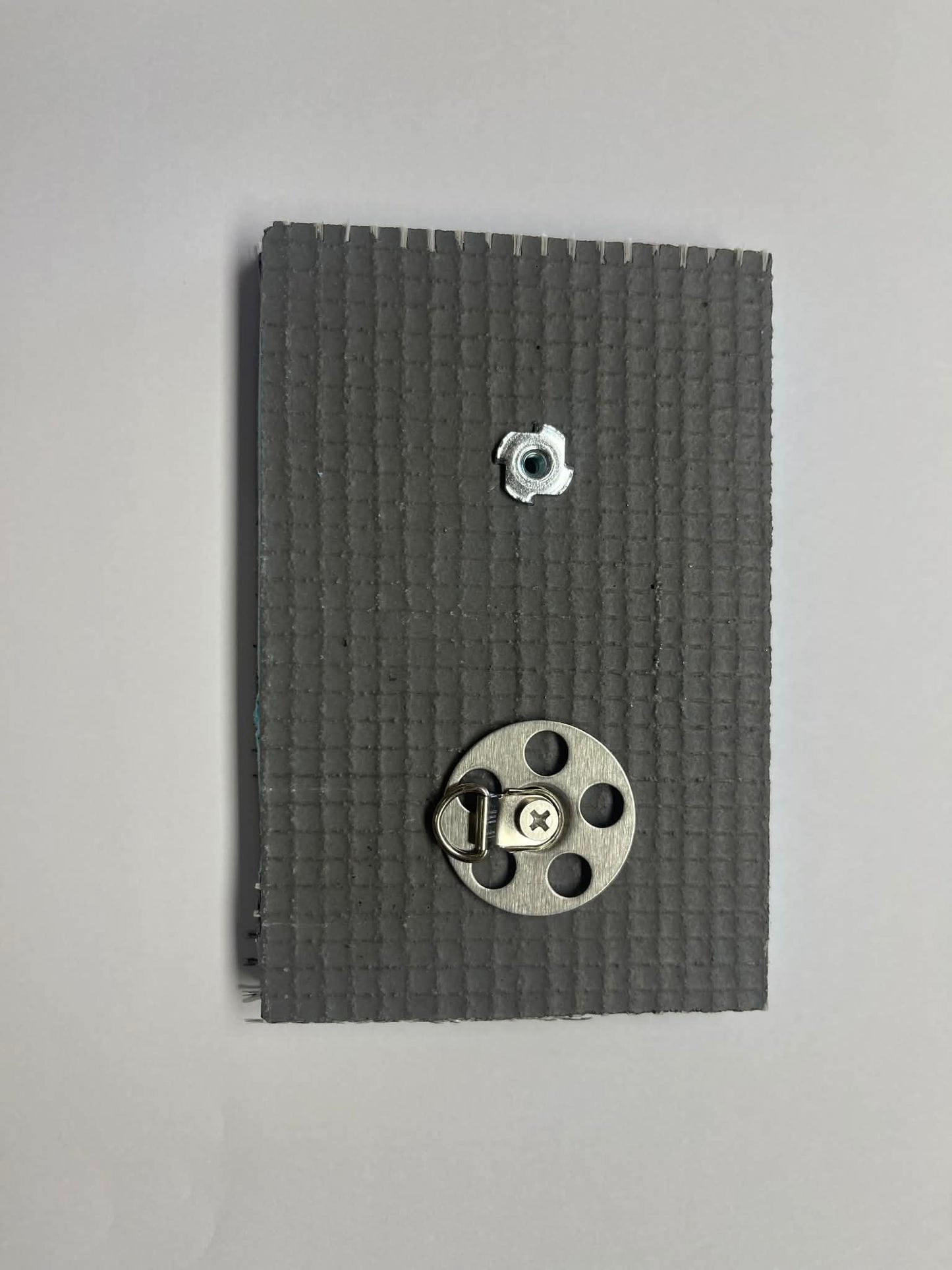

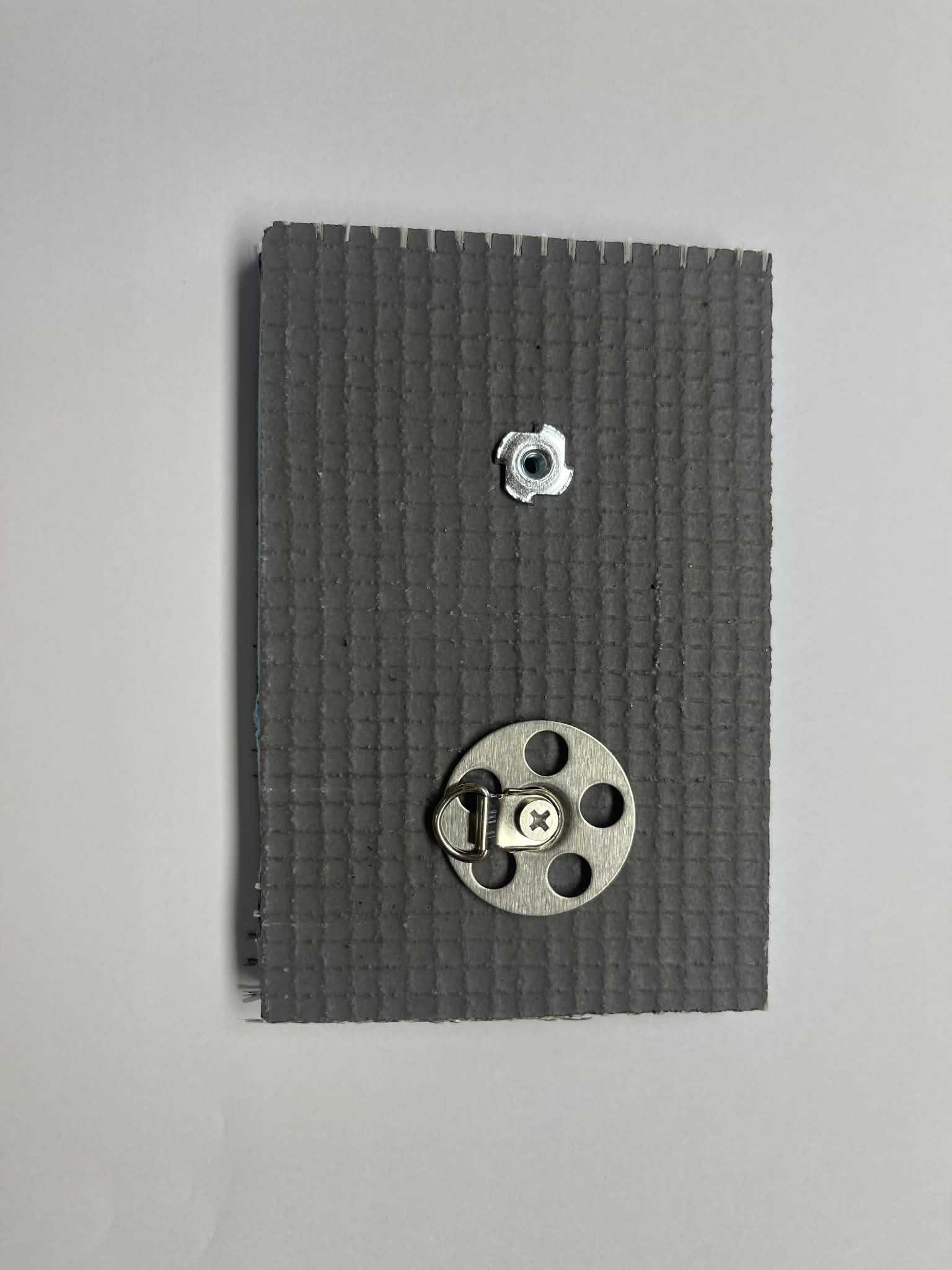

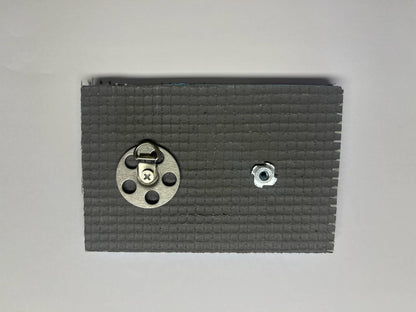

Mosaic Fixing kit for ThermaSheet Tile Backer Board - Various Pack Quantities

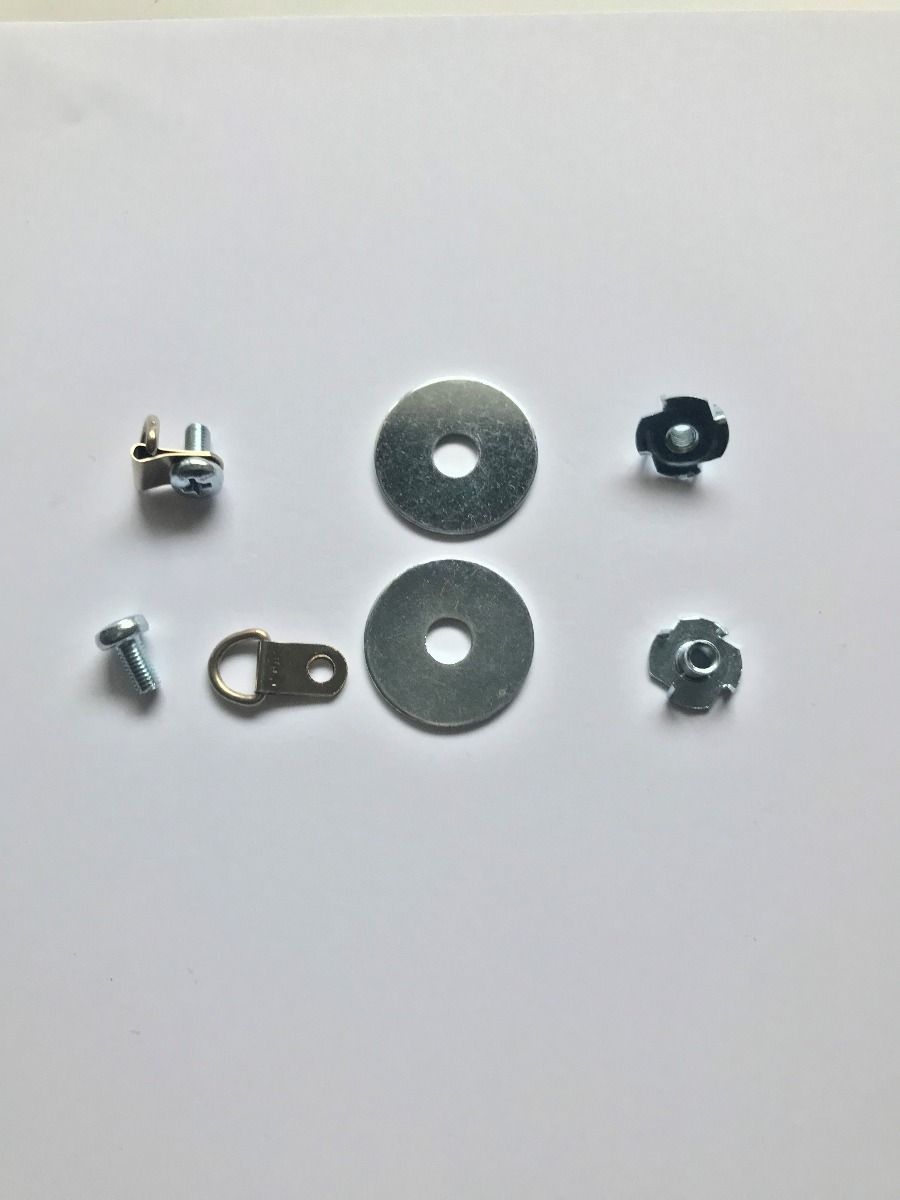

ThermaSheet ThermaSheet Insulation Tile Backer Board - FIXING KIT for MOSAICS

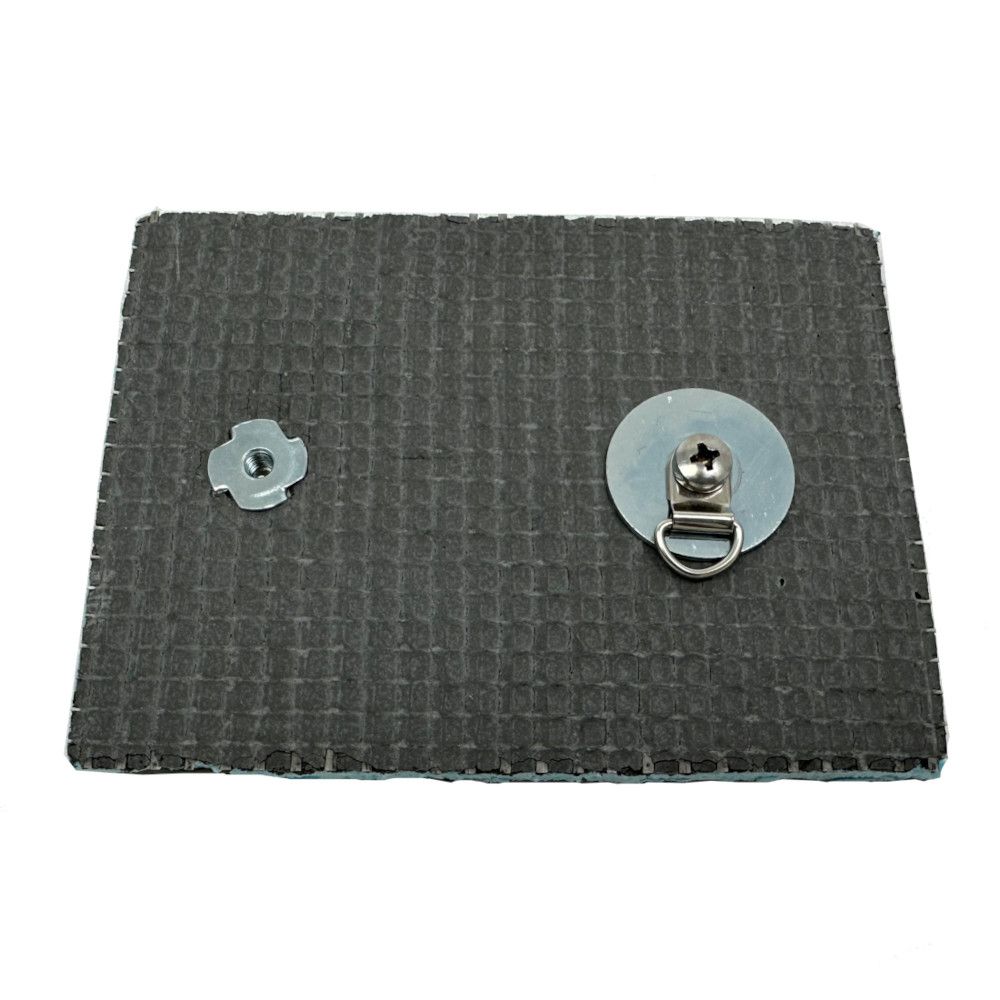

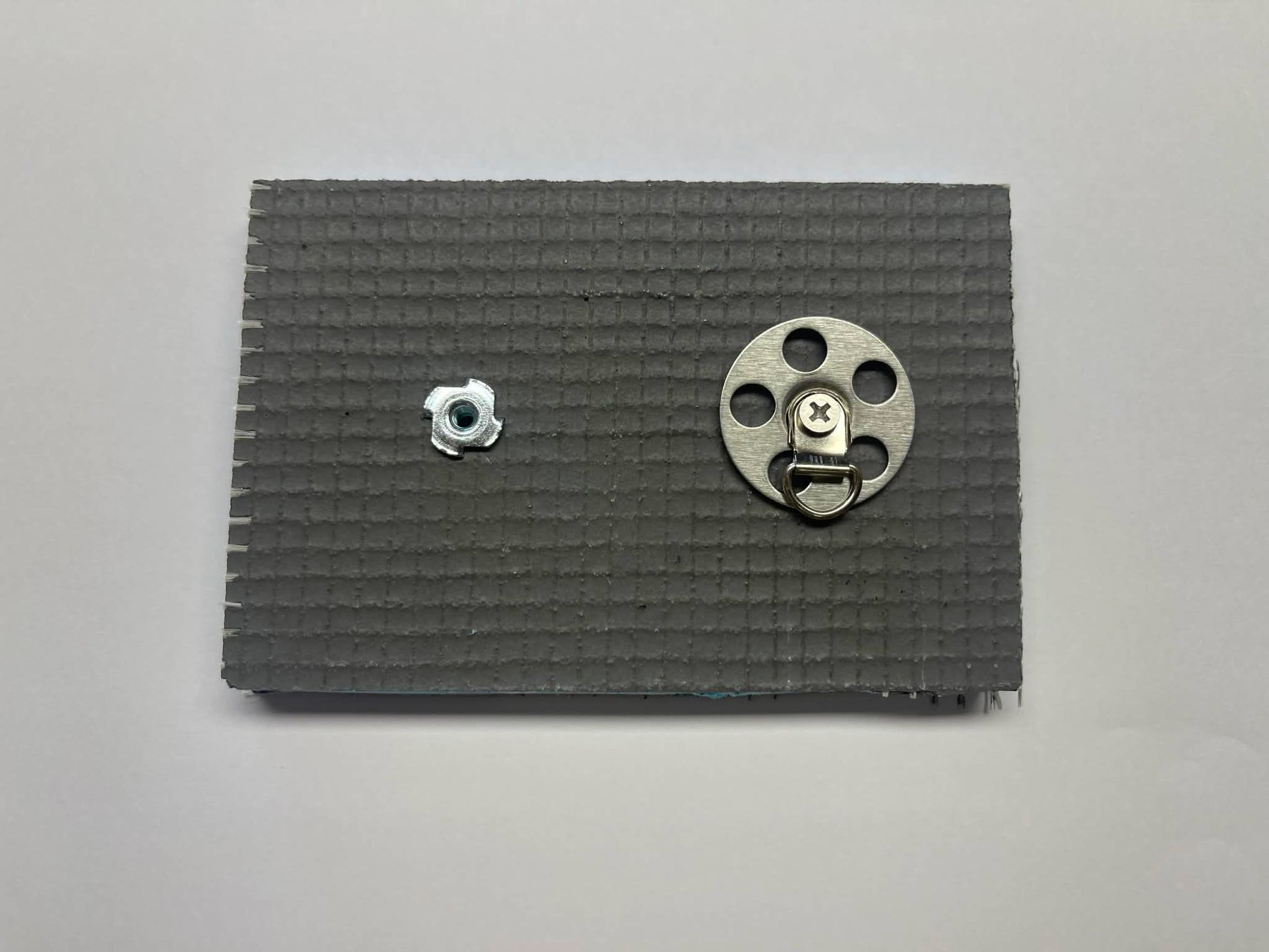

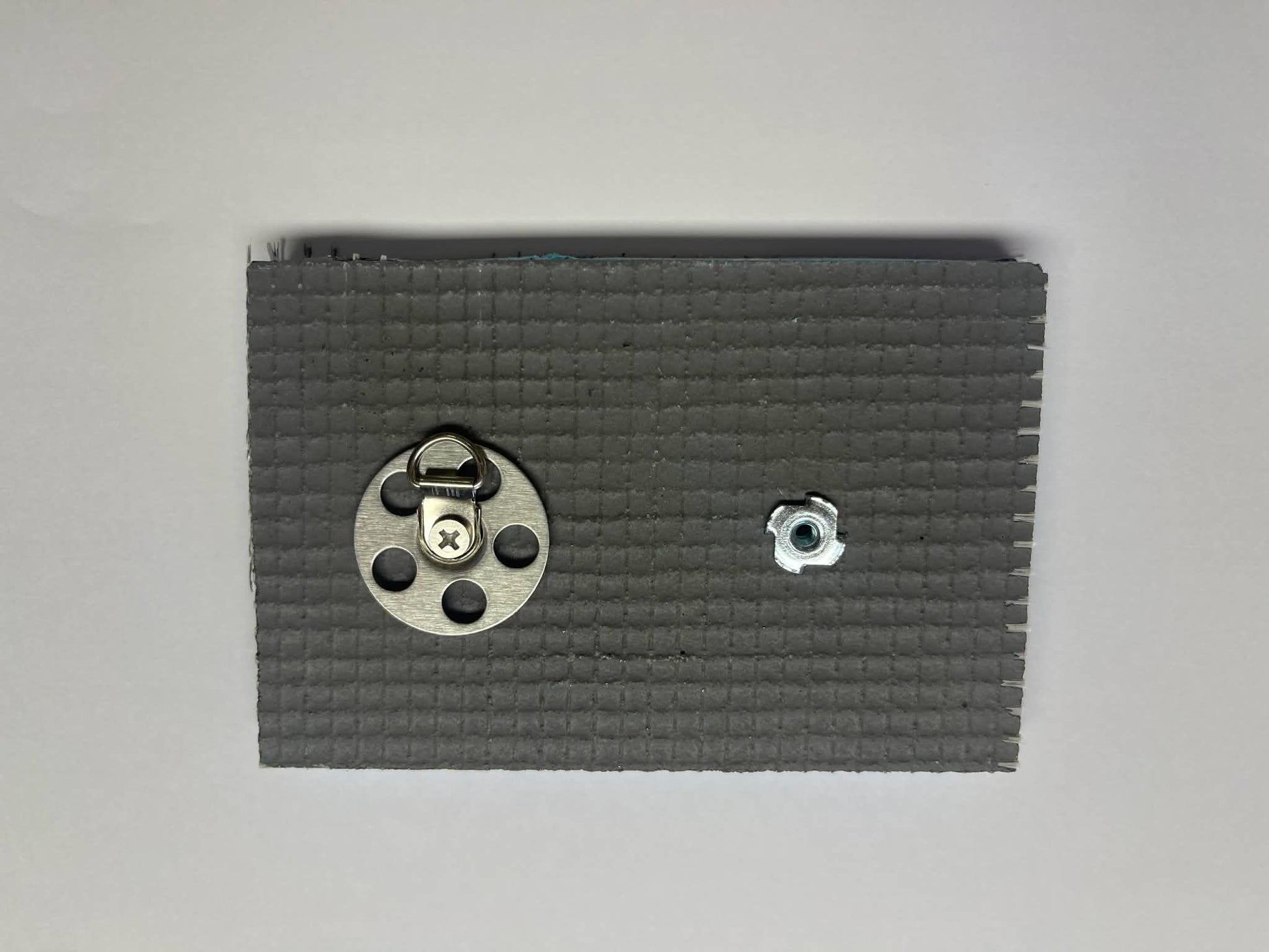

Fixings must be attached to the ThermaSheet before affixing mosaics.

1. Make a hole through the ThermaSheet approx 8mm use a screwdriver or drill

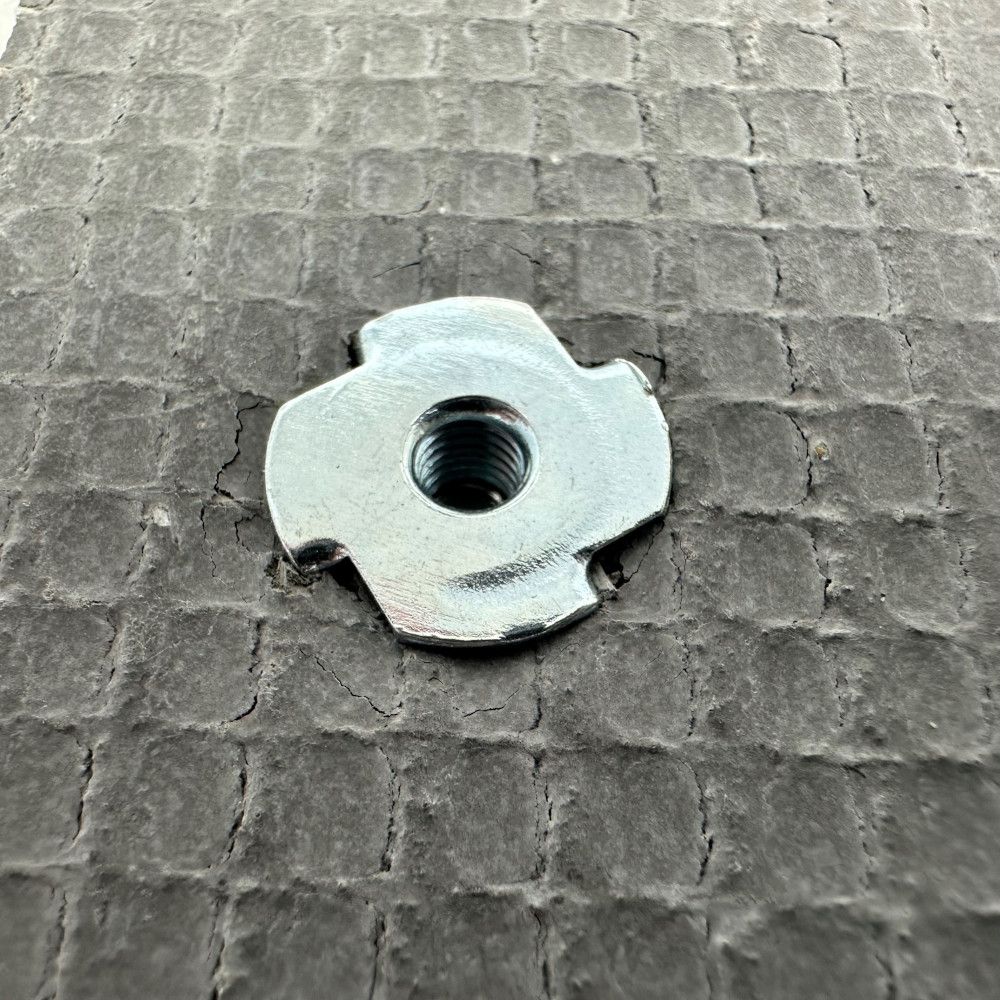

2. On the side you are going to mosaic on, push the T-Nut into the hole

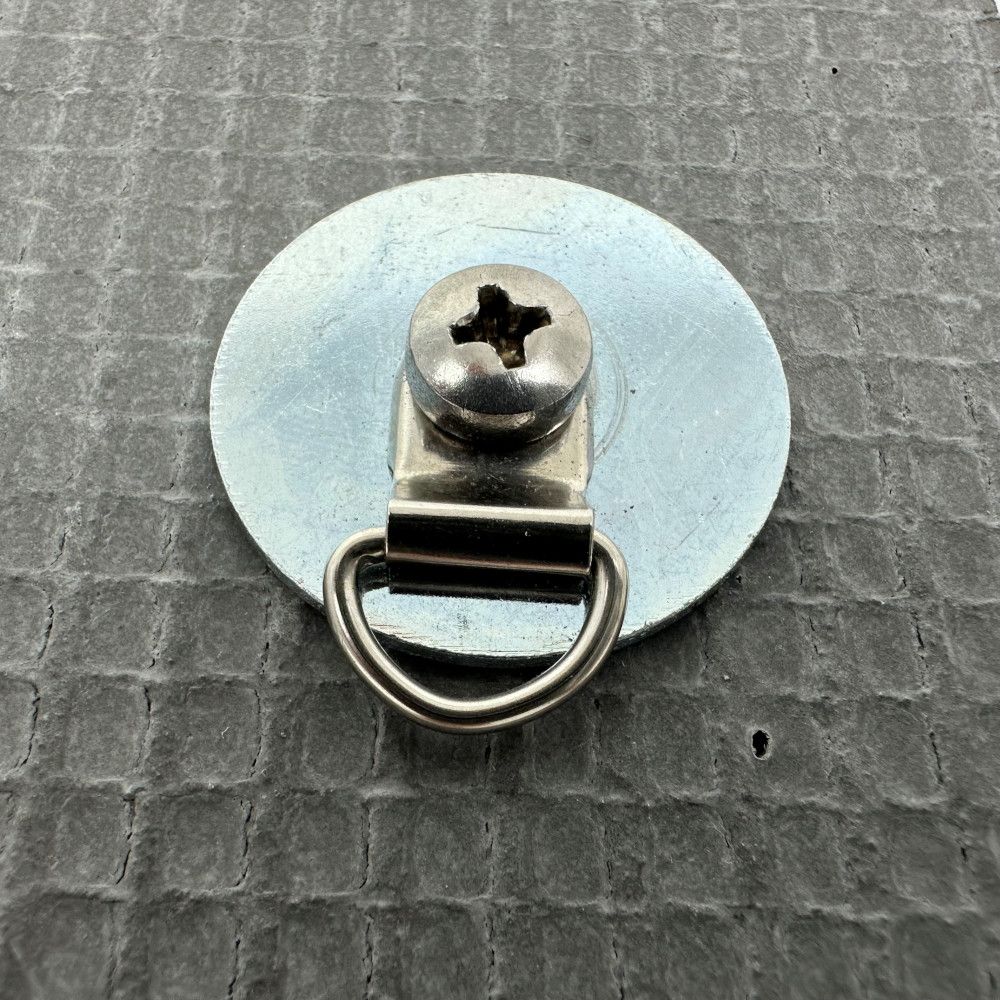

3. Slip the D-ring on the machine screw
4. Line-up the washer over the hole & insert the screw and hand-tighten
5. No need for a skim coat, glue directly over the T-nut, as it should now lay flush with the ThermaSheet board
6. It is advisable to cover the sides of the ThermaSheet with a fibre-glass mesh tape before applying the adhesive

Radiant Australia THERMASHEET Tile Backer Insulation Board:

Available in various sizes & thicknesses, including shower trays & flexible board.

The ThermaSheet tile backer boards have the same insulation & structural values as the popular Marmox & Wedi Board brands.

Manufactured without any CFC or HCFH compounds.

Tile backer insulation boards are commonly used below under floor heating systems as they minimise any downward heat losses, however they can also be used in instead of gyprock wall boards, providing greater insulation properties.

All sold in boxes of 6 boards (except the shower tray - sold singulary)

• RTTBB-06-1200:6mm: 1200 x 600mm - 0.72sqm per board (4.32sqm per box)
• RTTBB-10-1200:10mm: 1200 x 600mm - 0.72sqm per board (4.32sqm per box)
• RTTBB-10-2400:10mm: 2400 x 600mm - 1.44sqm per board (8.64sqm per box)
• RTTBB-20-1200:20mm: 1200 x 600mm - 0.72sqm per board (4.32sqm per box)
