Miller SkyGrip Temporary Horizontal Lifeline Stanchions and Base

Miller Anchorage SkyGrip™

The SkyGrip Temporary Horizontal Lifeline System represents a sophisticated fall protection anchorage solution engineered for attachment to steel or concrete structural elements. This stanchion-based system comprises vertical posts that support a horizontal safety line, with each stanchion functioning as an independent anchorage point. Characterised by its compact, lightweight construction, the system facilitates streamlined installation, dismantling, and storage. The patent-pending above-the-beam adjustment mechanism enables single-operator deployment while enhancing both safety and operational efficiency. The continuous pass-through architecture delivers uninterrupted 100% tie-off capability across multi-span installations. The integrated stainless steel energy absorber maintains consistent force distribution throughout fall events, minimising fall distance and preserving system integrity for up to 6 workers on steel applications and 5 workers on concrete applications, with a maximum of 2 workers per individual span.

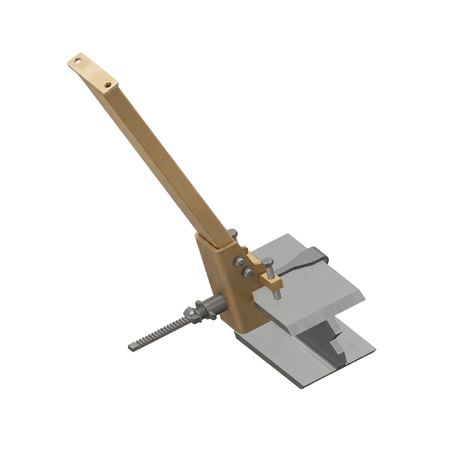

SGS18 - SkyGrip™ System Stanchion with Standard Base

• Beam Flange Width: 0.1 - 0.5m
• Beam Flange Thickness: Up to 57.2mm

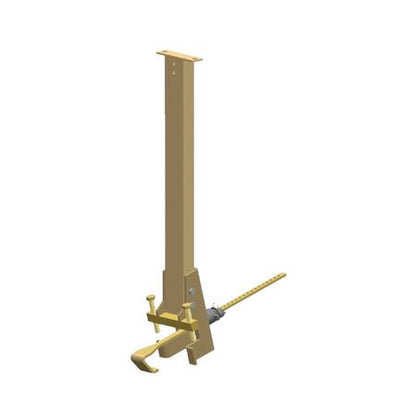

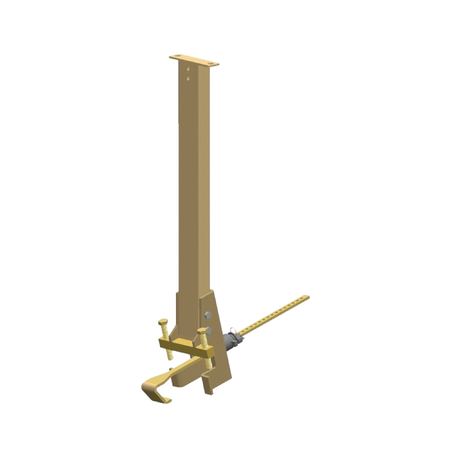

SGS18_60FT SkyGrip™ Temporary Horizontal Lifeline 18m System for 2 workers

• Single-span systems (no Intermediate stanchions) up to 18.3m
• Tension indicator - proper tensioning of system ensures accurate fall clearance requirements.
• Interchangeable bases between steel and concrete applications modular design maximizes investment and increases versatility.
• Durable zinc-plated steel construction - corrosion resistant for increased durability and longer service life.
• Meets OSHA, ANSI Al0.32-2004 and AS/ NZS18912 requirements
• Weight: 30.88kg
• System with Standard Base - Fit beam flanges 0.1 - 0.5m wide and up to 57.2mm thick.
• Complete system includes stanchions, energy absorber(s), line tension indicator, turnbuckle, cable and hardware.
• Number of Stanchions: 2
• Pass-through Brackets for Intermediate Stanchions: No intermediate stanchions
• Number of Energy Absorbers: 1
• Workers per System: 2

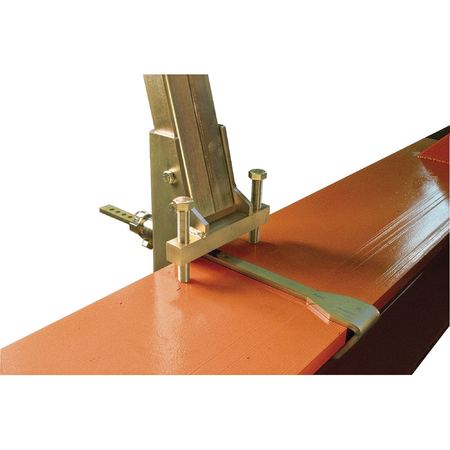

SGS18_120FT SkyGrip™ Temporary Horizontal Lifeline 36.5m System for 4 workers with Intermediate Sanction

• Multiple-span systems up to 36.57m.
• Tension indicator - proper tensioning of system ensures accurate fall clearance requirements.
• Interchangeable bases between steel and concrete applications modular design maximizes investment and increases versatility.
• Compact, stainless steel Miller SkyGrip™ energy absorber is engineered to keep system forces consistent during a fall - minimising fall clearance and maintaining low system forces for up to 6 workers on steel systems and up to 5 workers on concrete systems (max. 2 workers per span)
• Durable zinc-plated steel construction - corrosion resistant for increased durability and longer service life.
• Meets OSHA, ANSI Al0.32-2004 and AS/ NZS18912 requirements
• Weight: 37.41kg
• System with Standard Base - Fit beam flanges 0.1 - 0.5m wide and up to 57.2mm thick.
• Complete system includes stanchions, energy absorber(s), line tension indicator, turnbuckle, cable and hardware.
• Number of Stanchions: 3
• Pass-through Brackets for Intermediate Stanchions: 1
• Number of Energy Absorbers: 2
• Workers per System: 4

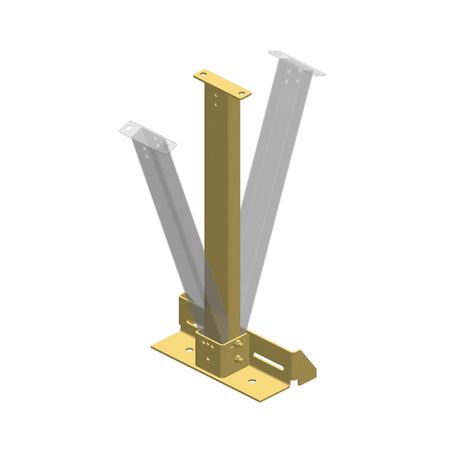

SGC_120FT 36.6m System for 4 workers - 1 intermediate Stanchion - Concrete Applications

• Above-the-beam adjustment – patent-pending design allows for easy one-person installation and dismantle, increasing safety and productivity.
• Continuous pass-through design – 100% tie-off connection with multi-span systems.
• Stanchions also serve as single-point anchorages.
• System tension indicator ensures accurate fall clearance requirements.
• Interchangeable bases between steel and concrete applications, maximises investment and increases versatility.
• Durable zinc-plated steel construction – corrosion resistant for increased durability and longer service life.
• Attach to rebar, coil inserts or concrete expansion bolts.
• Complete system includes stanchions, tie-back brackets, chain connectors, slider brackets, energy absorber(s), line tension indicator, turnbuckle, cable and hardware.
• Number of Stanchions: 2
• Pass-through Brackets for Intermediate Stanchions: 1
• Number of Energy Absorbers: 2
• Workers per System: 4

Miller's commitment to engineering excellence ensures durability, user safety, and compliance with stringent industry protocols. For professionals requiring trusted equipment that combines technical sophistication with practical reliability. The Miller standard exemplifies superior design and rigorous safety compliance.
