Miller DuraHoist Mount Sleeves, Parts and Accessories

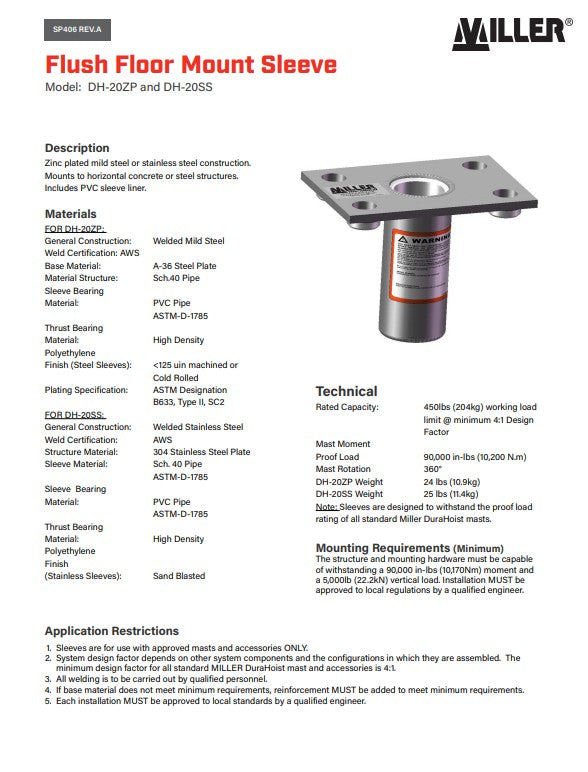

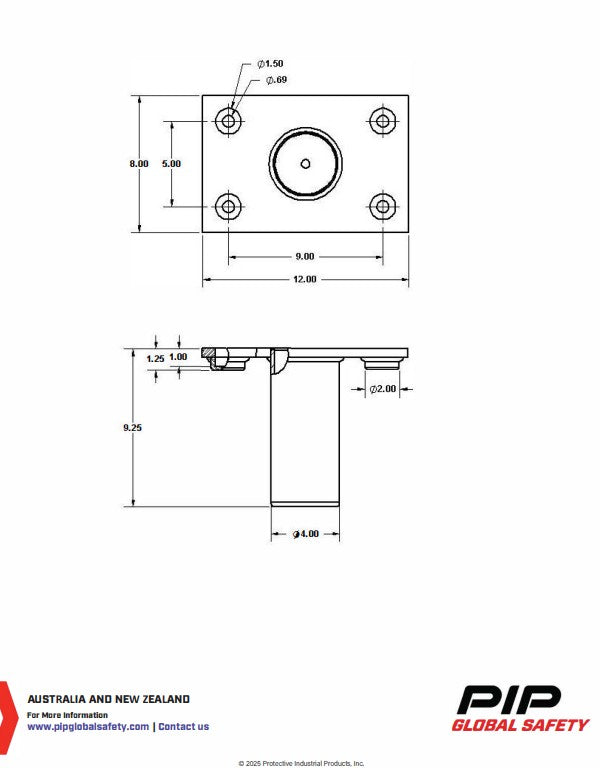

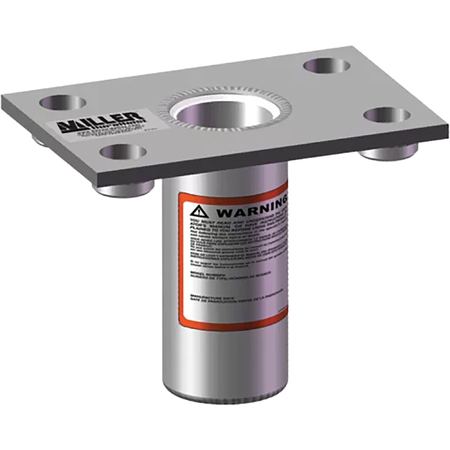

DuraHoist Flush Floor Mount Sleeve
Engineered to eliminate trip hazards with flush-floor design. Installs into a 10cm diameter core hole in horizontal concrete or steel installations. Note: Sleeves are designed to withstand the proof load rating of all standard Miller DuraHoist masts.
Includes PVC sleeve liner
ASTM Designation B633, Type II, SC2
DH-20ZP
Zinc plated mild steel construction
204kg working load
Weight: 10.9kg
DH-20SS
304 stainless steel construction.
204kg working load
Weight: 11.4kg

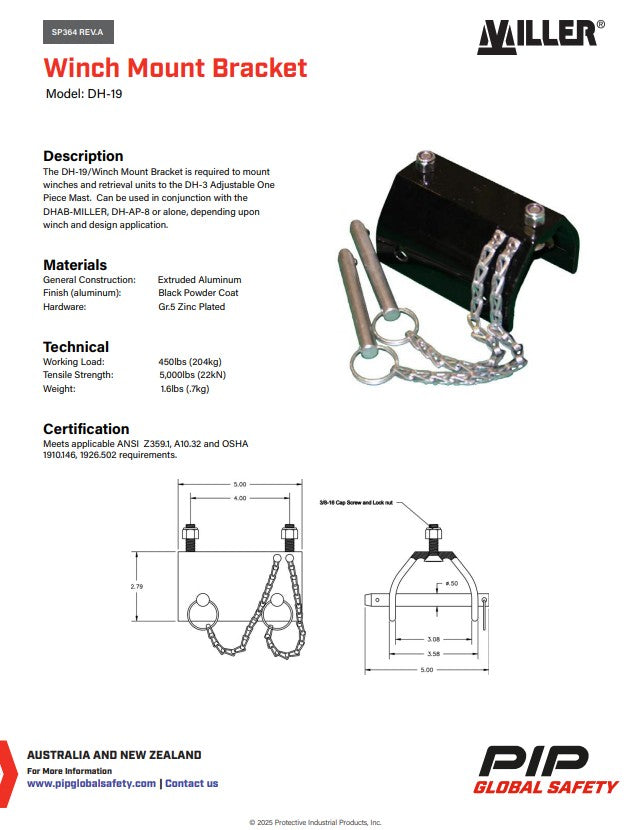

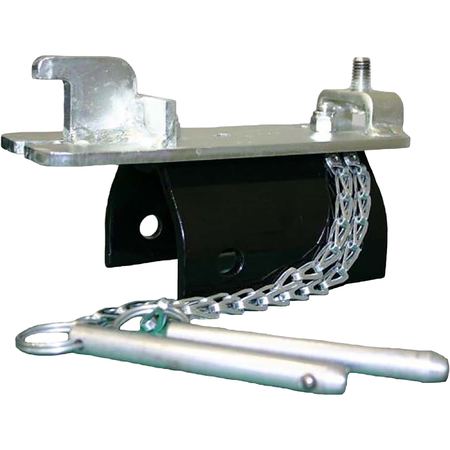

DuraHoist Winch Mount Bracket DH-19
Required to mount winches and retrieval units to the DH-3 Adjustable One Piece Mast
Zinc Plated Aluminum
Working Load: 204kg
Weight: 0.7kg
Meets applicable ANSI Z359.1, A10.32 and OSHA 1910.146, 1926.502 requirements

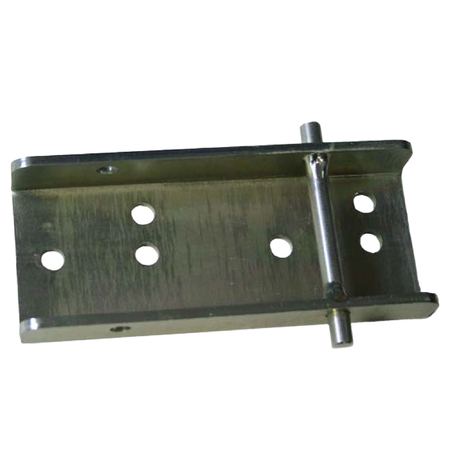

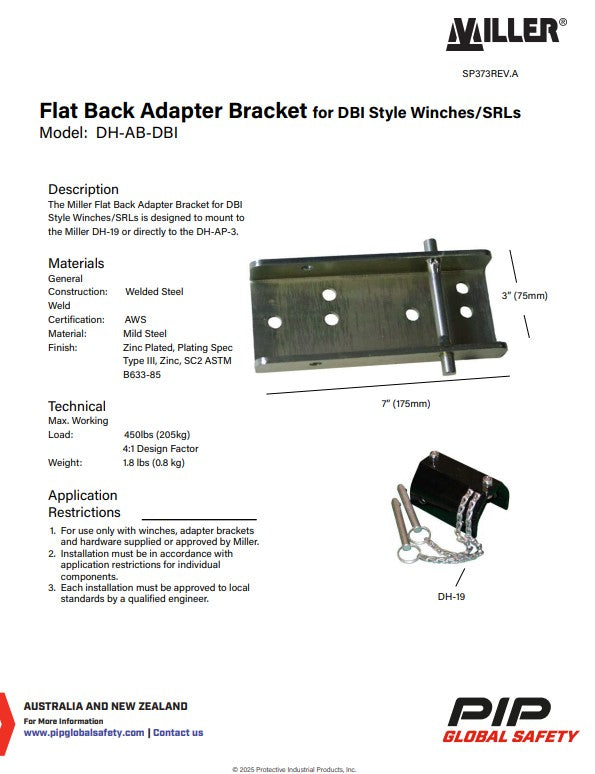

DuraHoist Flat Back Adapter Bracket for DBI Winch/SRL DH-AB-DBI
Designed for seamless mounting compatibility with Miller DH-19 systems or direct DH-AP-3 installation, delivering professional-grade performance for demanding rigging applications.

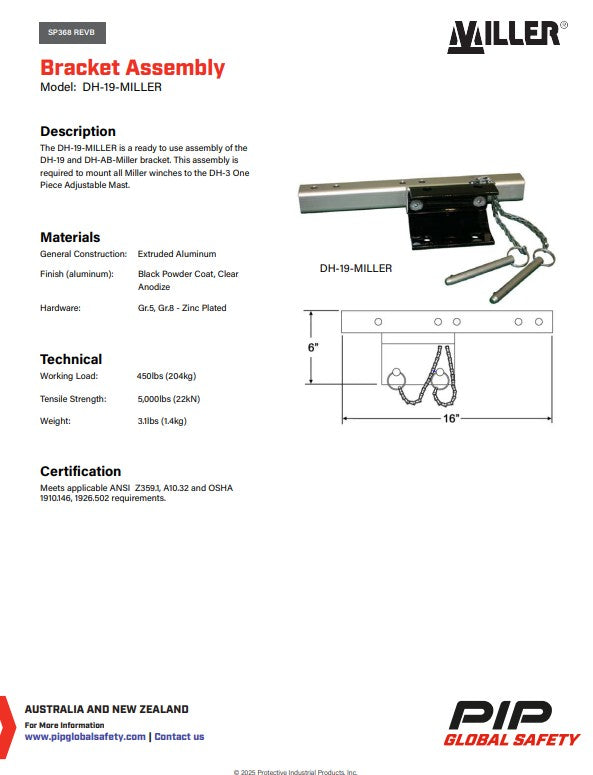

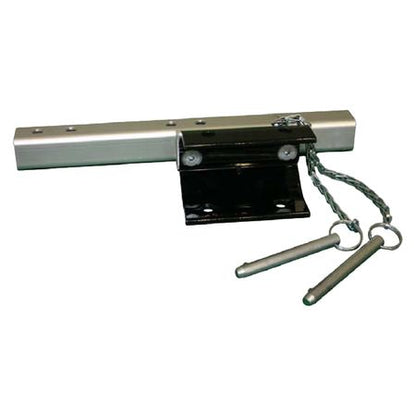

The DH-19-MILLER represents a fully integrated mounting solution, combining the DH-19 bracket with the DH-AB-MILLER adapter into a single assembly. This ready-to-install system is engineered to facilitate secure attachment of all Miller® winches to the DH-3 One Piece Adjustable Mast, as well as Miller® ManHandler® Hoist/Winch units and Miller® MightEvac® SRL devices to DuraHoist® Portable Confined Space Systems. Precision-designed for professional rescue and confined space operations.
Zinc Plated Aluminum
Working Load: 204kg
Weight: 1.4 kg
Meets applicable ANSI Z359.1, A10.32 and OSHA 1910.146, 1926.502 requirements.

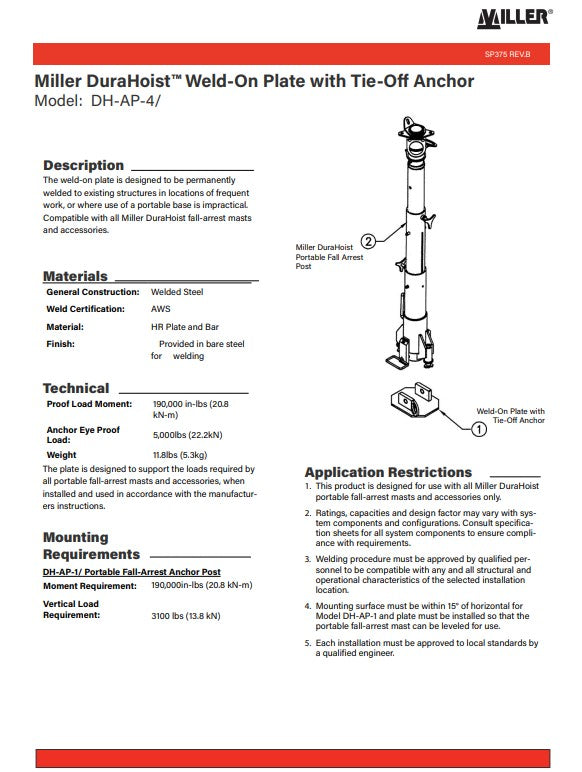

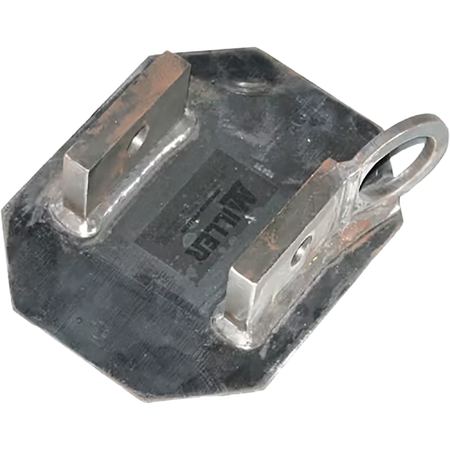

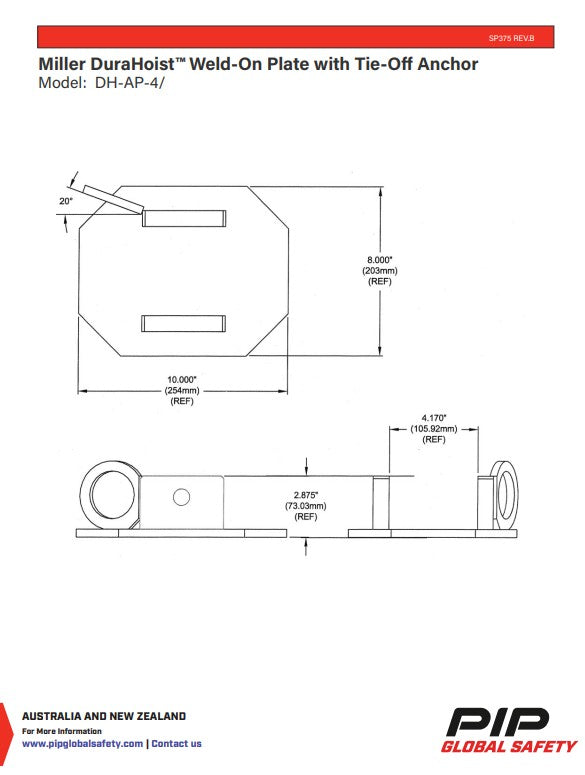

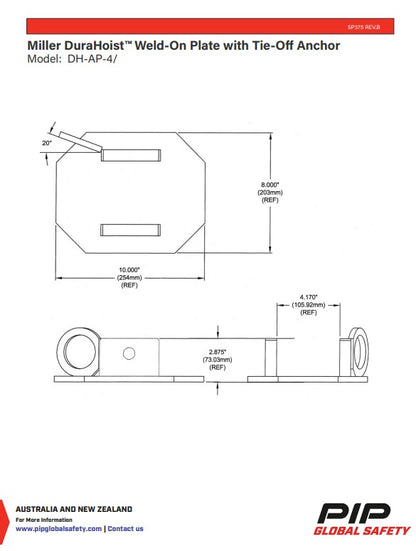

DuraHoist Weld-On Plate with Tie-off Anchor DH-AP-4
The weld-on plate delivers a permanent anchoring solution for high-frequency work locations and fixed installations where portable bases are unsuitable. Fully compatible with all Miller DuraHoist fall-arrest masts and accessories, it's engineered to safely support the complete load requirements of portable fall-arrest systems when installed and operated according to manufacturer specifications.
DH-AP-4 includes a tie-off anchorage point
Weight: 5.3kg

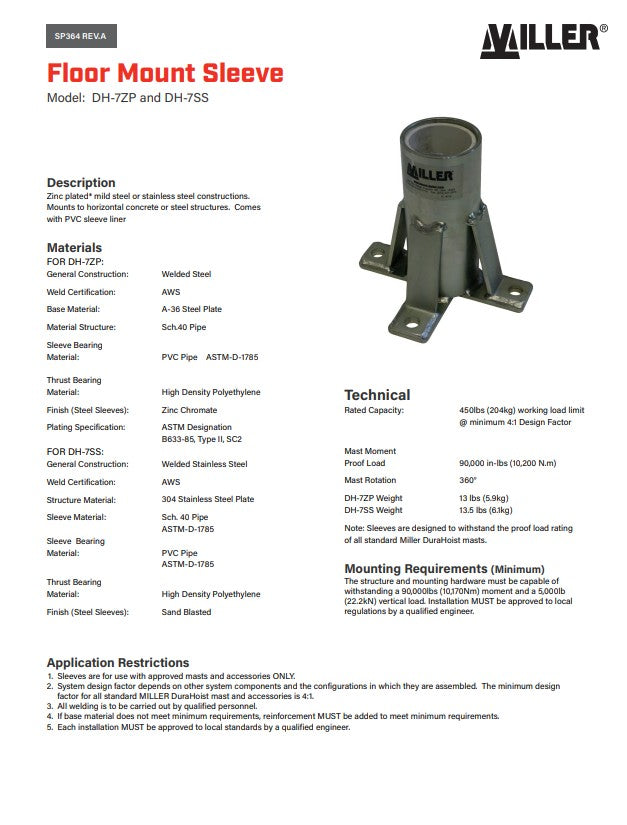

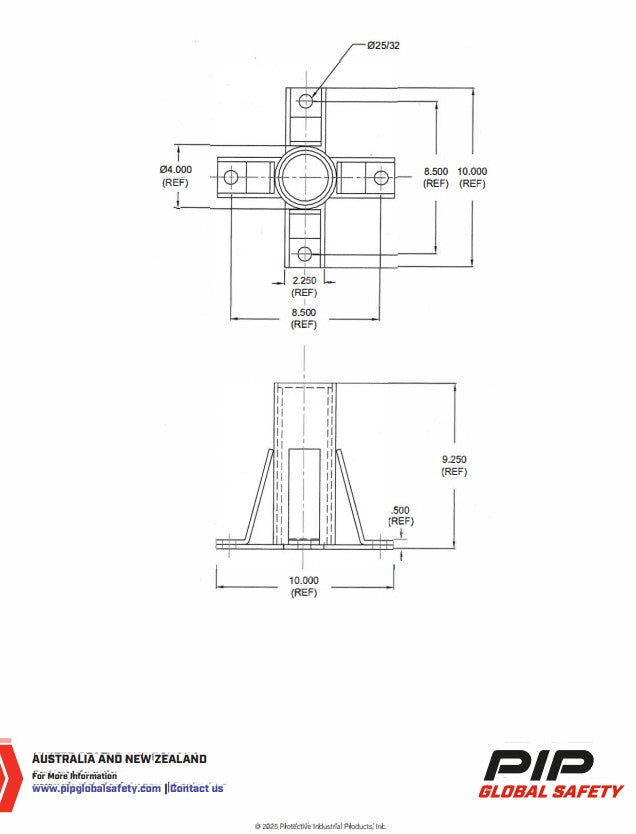

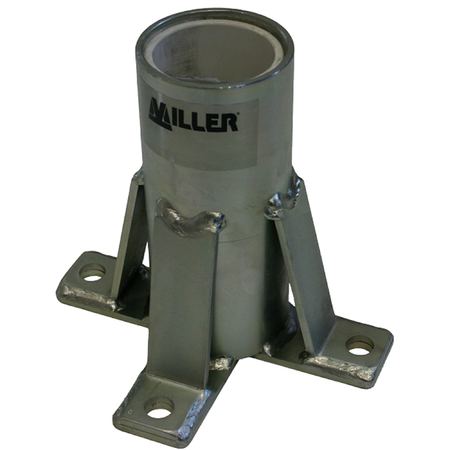

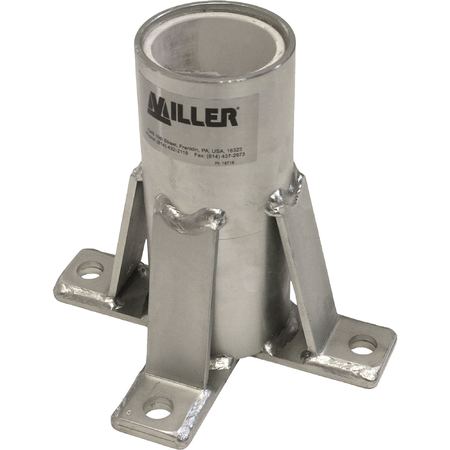

DuraHoist Floor Mount Sleeve
Designed to withstand the proof load rating of all standard Miller DuraHoist masts. Mounts to horizontal concrete or steel structures.
Comes with PVC sleeve liner
ASTM Designation B633-85, Type II, SC2
DH-7SS
stainless steel construction
Weight: 6.1kg
DH-7ZP
Zinc plated mild steel construction.
Weight: 5.9kg

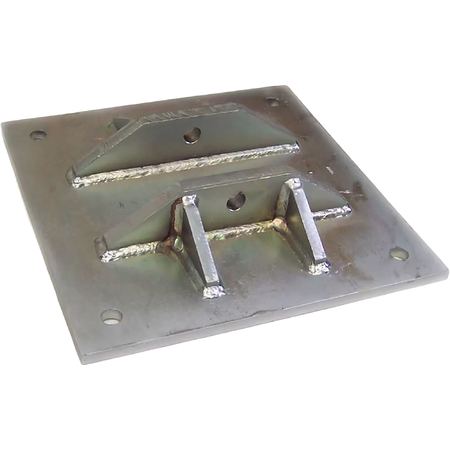

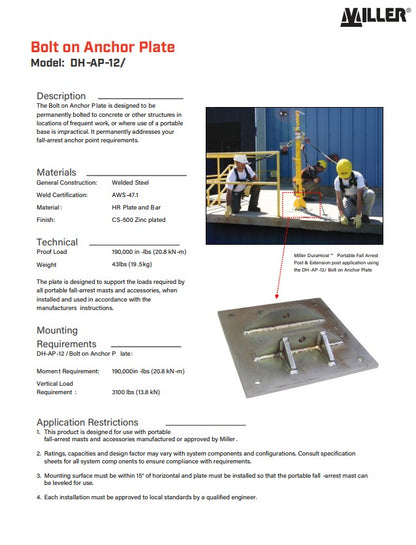

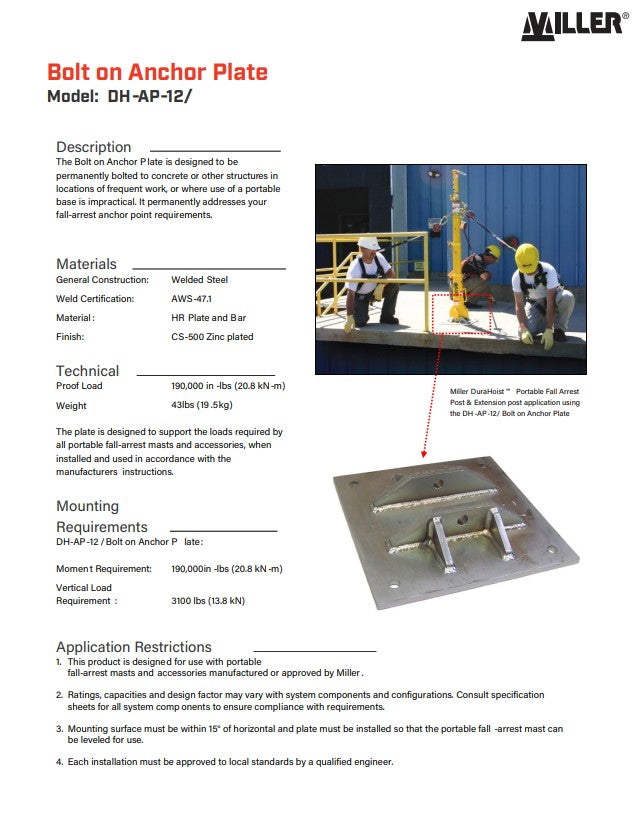

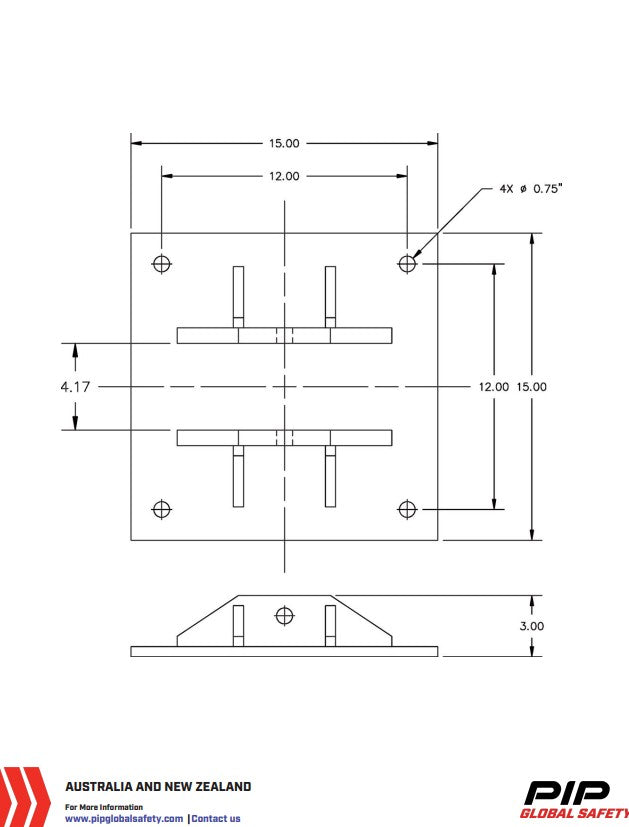

DuraHoist Bolt On Anchor Plate DH-AP-12
The Bolt-On Anchor Plate provides a permanent fall-arrest anchor solution for frequent work locations where portable bases aren't practical. Suitable for concrete or steel installations, it delivers reliable anchoring for professional safety operations.
Zinc plated Steel
Weight: 19.5 kg

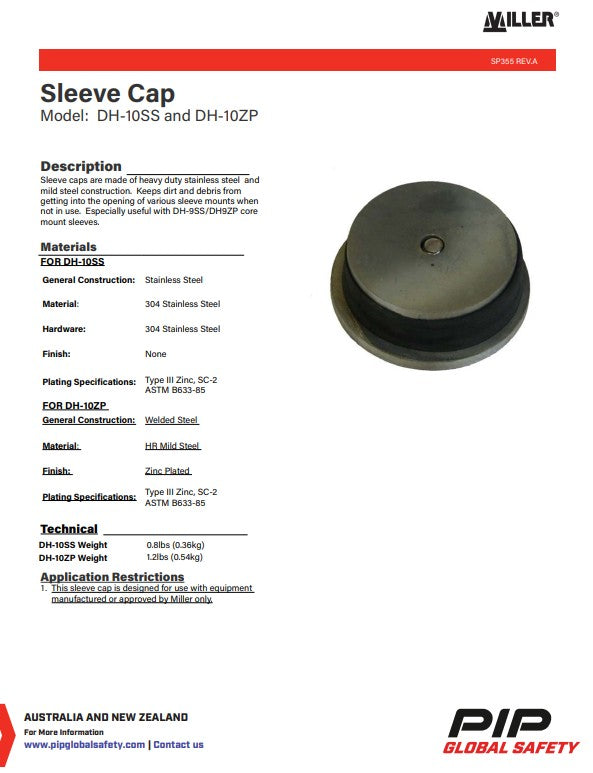

DuraHoist Sleeve Cap
Keeps dirt and debris from getting into the opening of various sleeve mounts
DH-10ZP
Zinc-plated, Mild Steel
Weight: 0.5 kg
DH-10SS
304 Stainless Steel
Weight: 0.4 kg

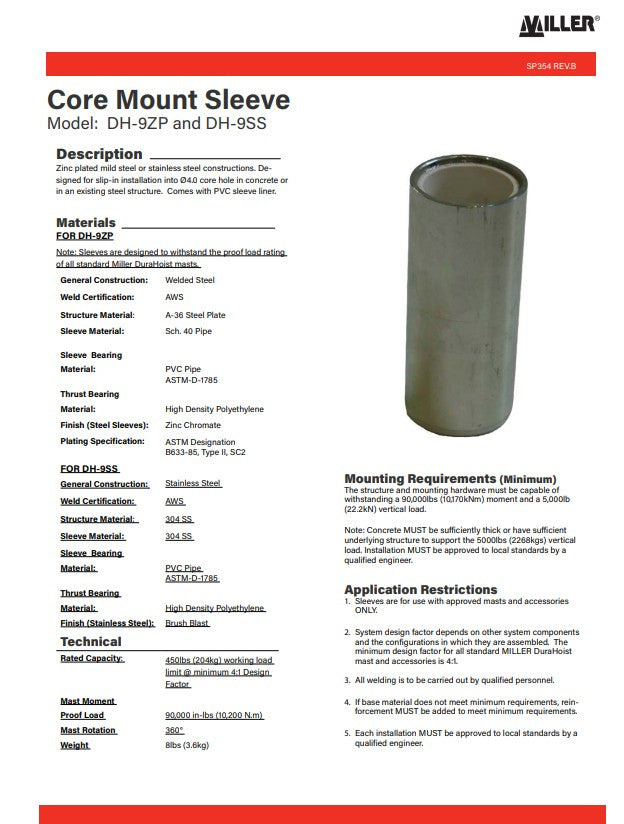

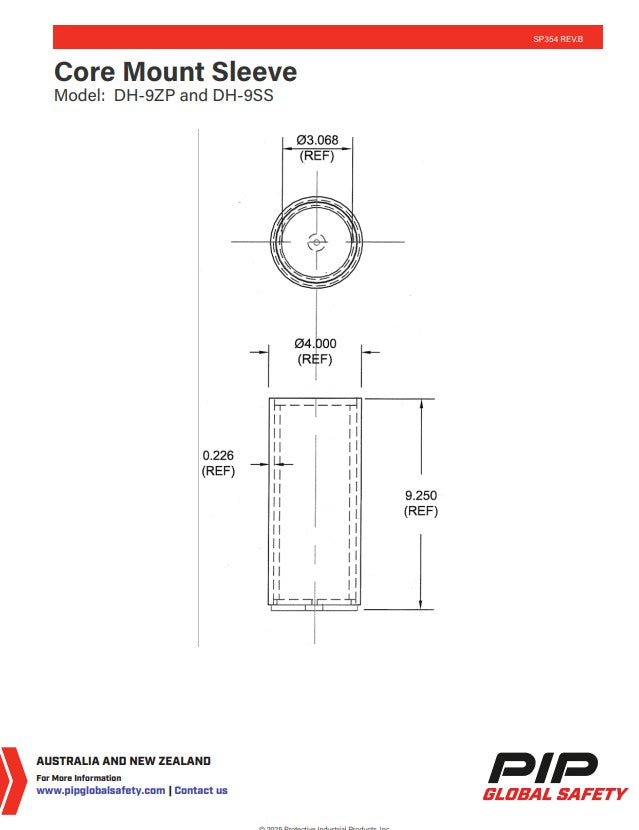

DuraHoist Core Mount Sleeve
Designed for slip-in installation into a 0.10m diameter core hole in concrete or in an existing steel structure
DH-9ZP
Zinc Plated
Weight: 3.6 kg
DH-9SS
Zinc Plated
Weight: 3.6 kg

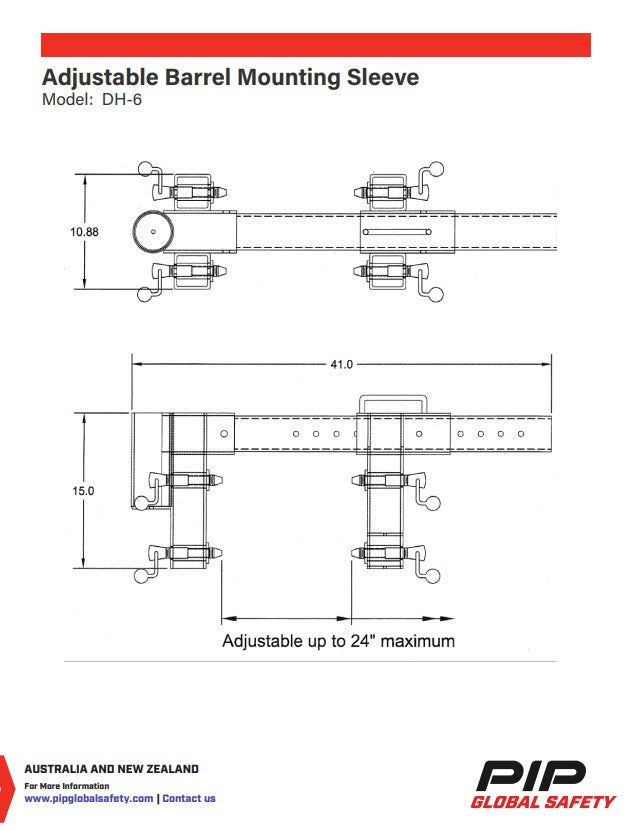

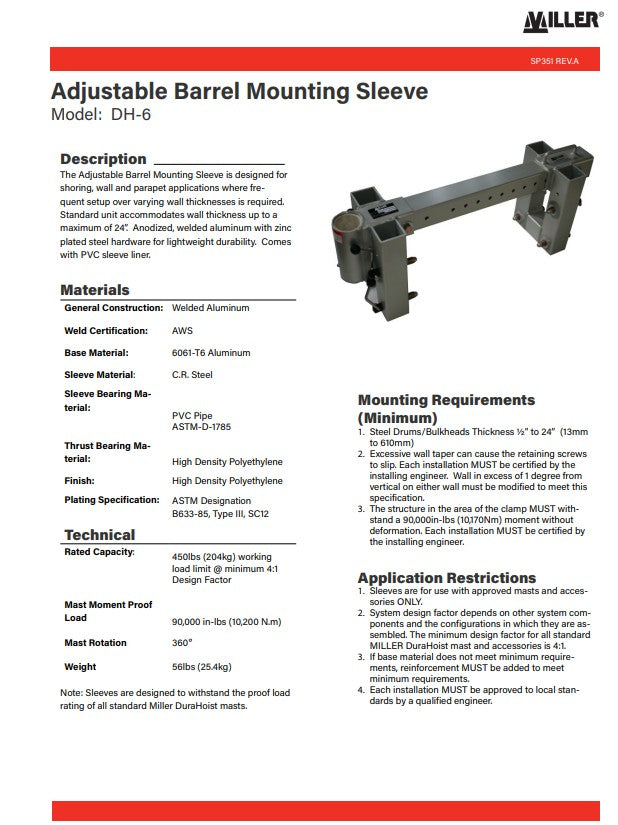

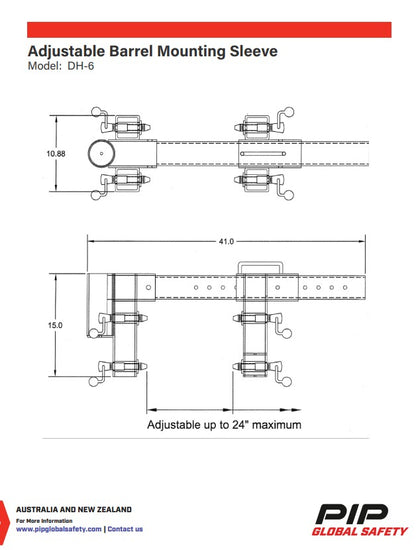

DuraHoist Adjustable Barrel Mount Sleeve DH-6
Engineered for shoring, wall, and parapet applications requiring adaptability across varying wall thicknesses. The adjustable design accommodates structures
Anodized Welded Aluminum
Zinc-plated Steel Hardware
Weight: 25.4 kg
