Linq Height Safety Temporary Anchors

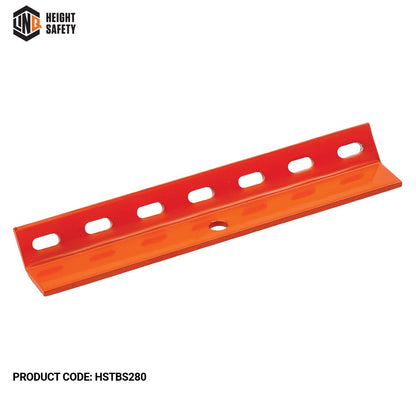

HSTBS280 & HSTBS500 Anchor Tetha Bar Straight 280mm or 500mm temporary anchor plates are engineered for extreme workplace situations. Boasting a minimum breaking strength of 15kN, the range has been developed to be a durable and efficient temporary roof line anchor system.  An affordable temporary and reusable alternative to installation of a permanent purlin style anchor. Compact design and lightweight materials provide a tried and tested safety solution

• Rated for up to a 140kg user
• Can withstand fall arrest forces up to 15kN (It is important to ensure that the structure to which any LINQ Tetha anchor plate is installed, has sufficient strength (refer to ASNZS 1891.4) to sustain the applied load)
• The Tetha T-Bar has an easy to use double tie off L-screw and wing nut applicator that clips onto the roof edge (for suitable profiles only)
• Can be used as a temporary anchor point in applications along a roof line where no permanent anchor point exists
• Quick installation and removal
  • Installation should always be conducted by a competent person as described in ASNZS 1891.4
• Provides safe 360 degree work area
• For use on metal or tile roofs
• HSTBS280

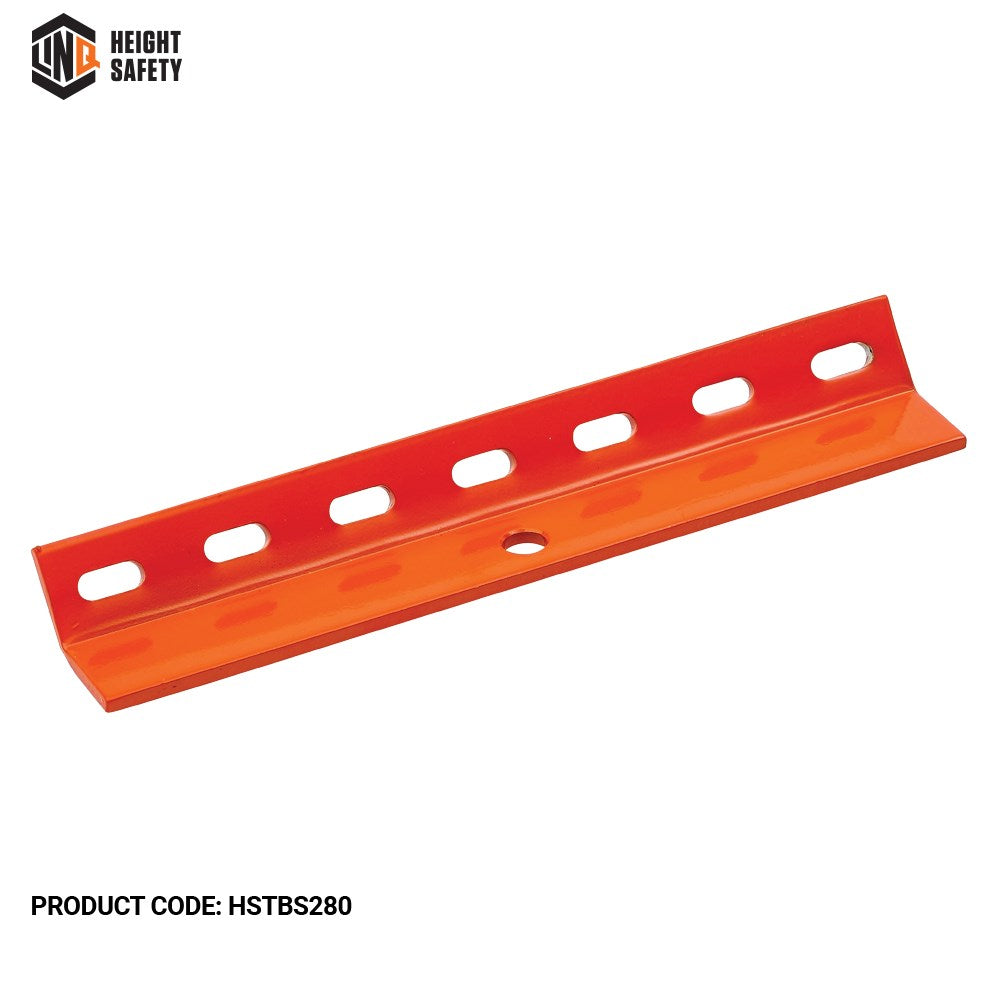

  • 280mm size all purpose metal roofs
• HSTBS280

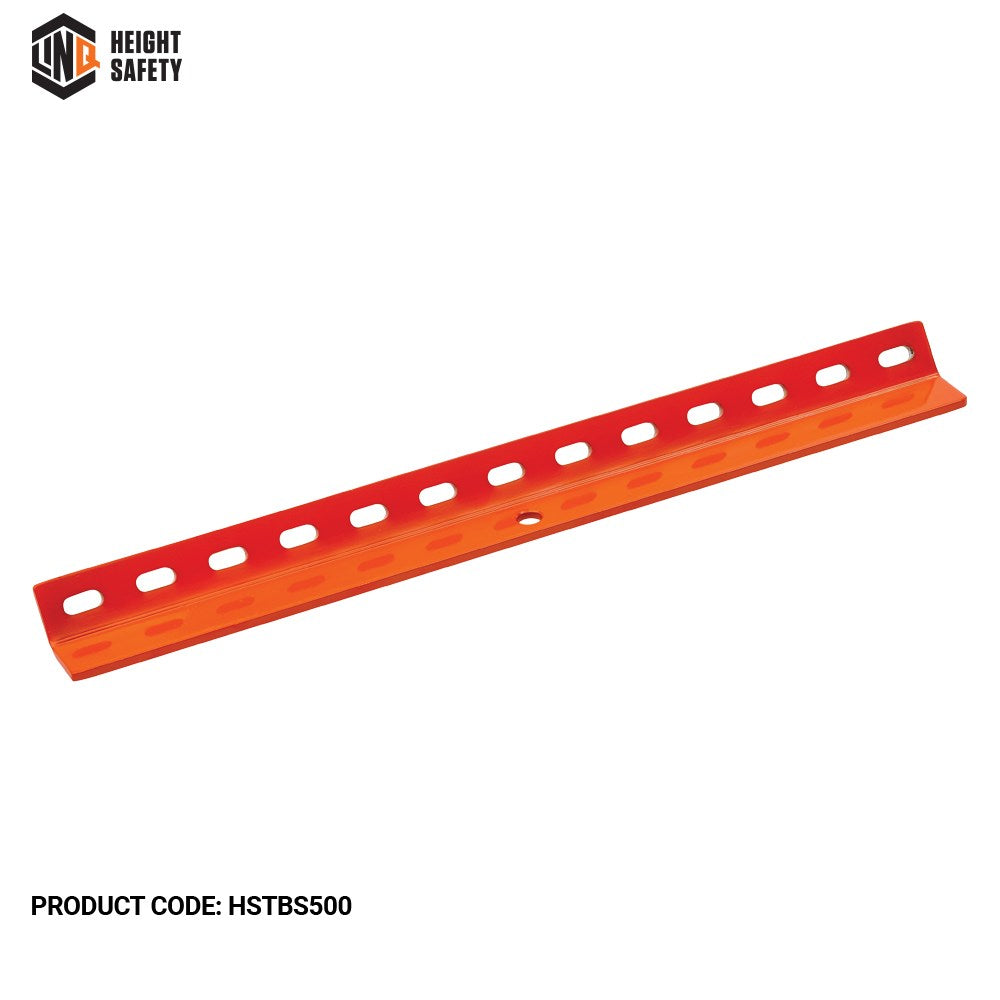

  • 500mm used for Trimdeck or Custom Orb roofs
• Conforms to ASNZS 1891.4 requirements

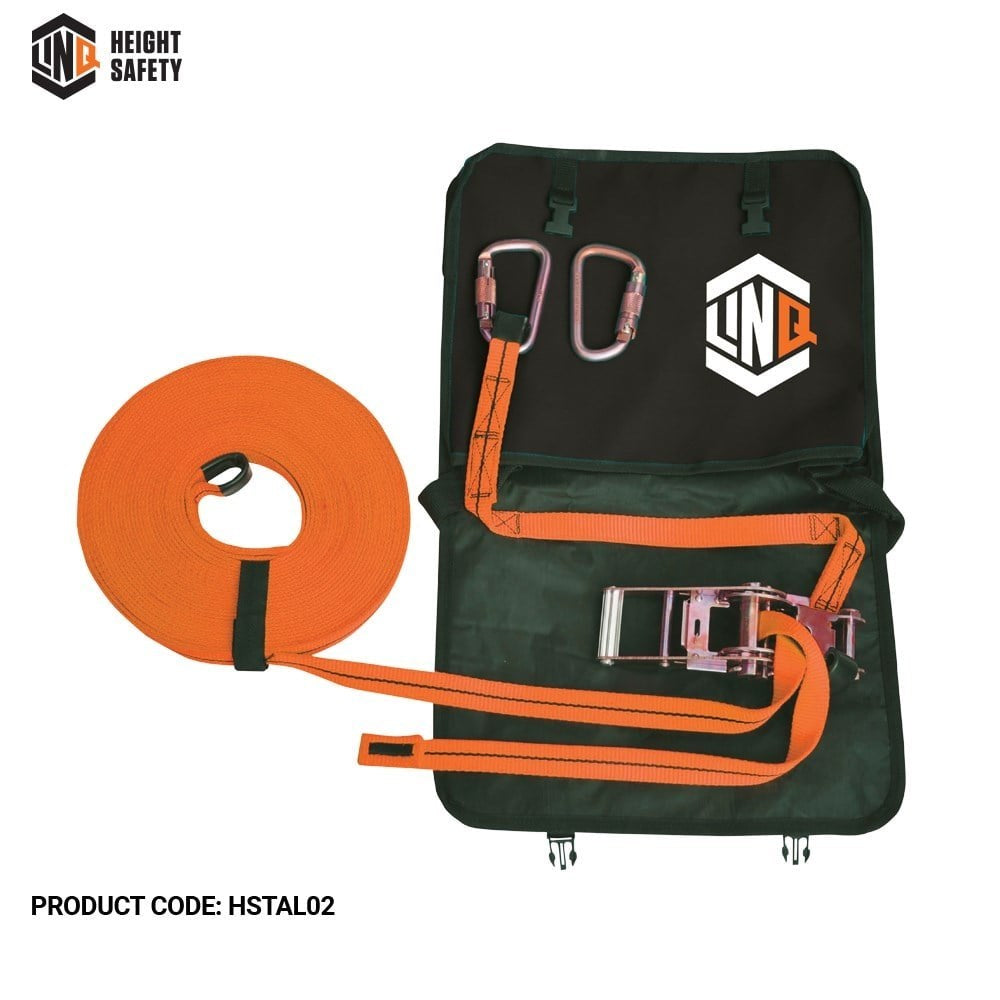

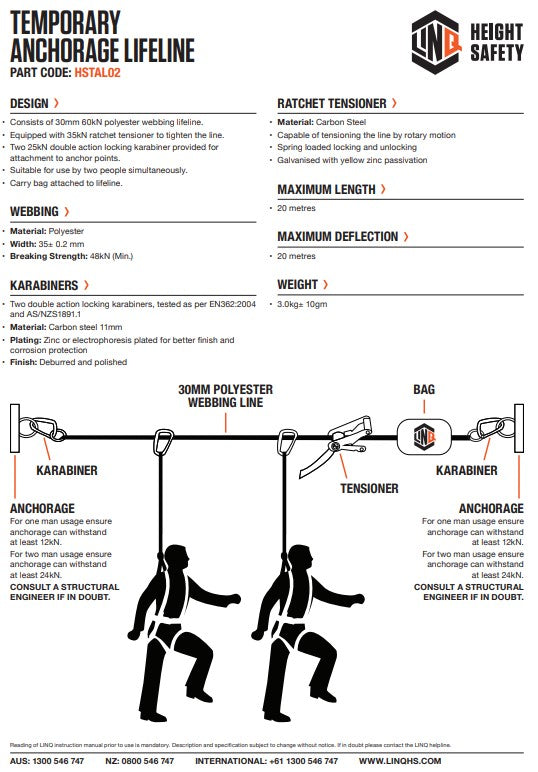

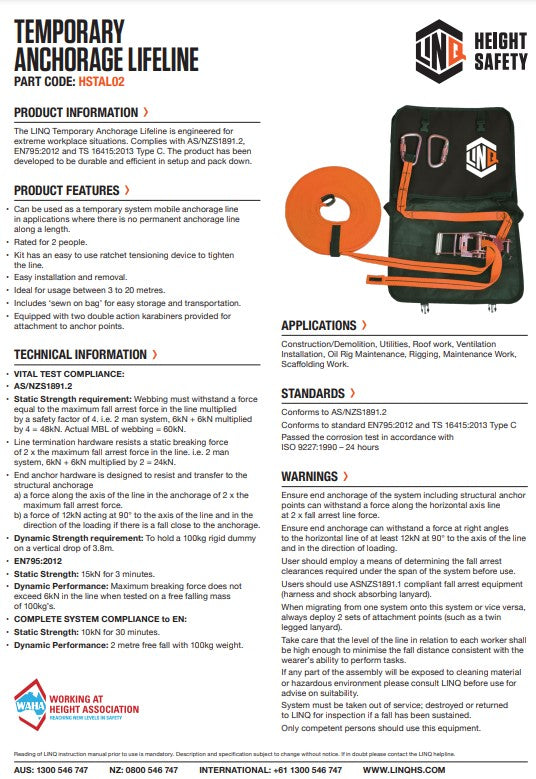

HSTAL02 Temporary Anchor Line 2-Man portable anchorage lifeline is engineered for extreme workplace situations. Complies with AS/NZS1891.2 and EN 795:1996 Class B, the product has been developed to be durable and efficient in setup and pack down.  The webbing temporary static line kit is a lightweight, 20m line, complete with ratchet tensioner for quick and easy installation.

• Rated for 2 people
• Kit has an easy to use ratchet tensioning device to tighten the line
• Easy installation and removal
• Ideal for usage between 3 to 20 meters
• Includes sewn on bag for easy storage and transportation
• Equipped with two double action karabiners provided for attachment to anchor points
• Conforms to AS/NZS1891.2
• Conforms to standard EN 795:1996
• Passed the corrosion test in accordance with ISO 9227:1990 - 24 hours

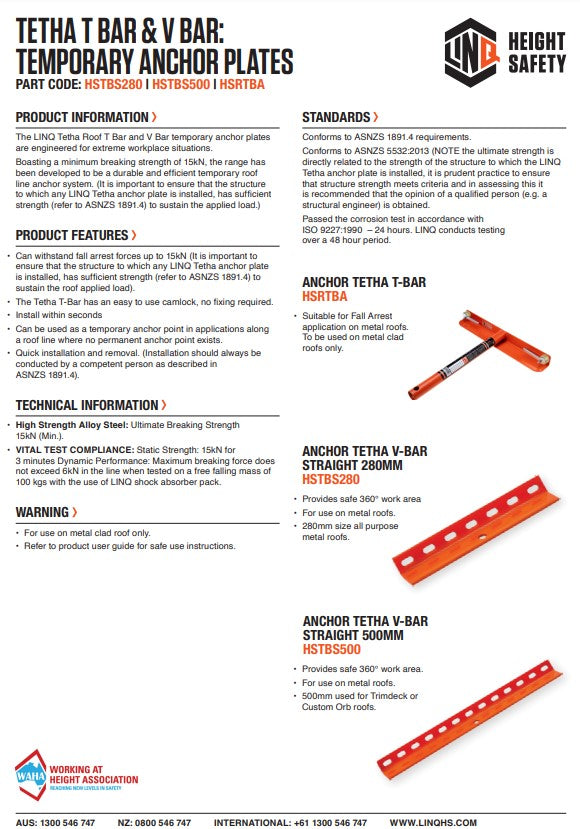

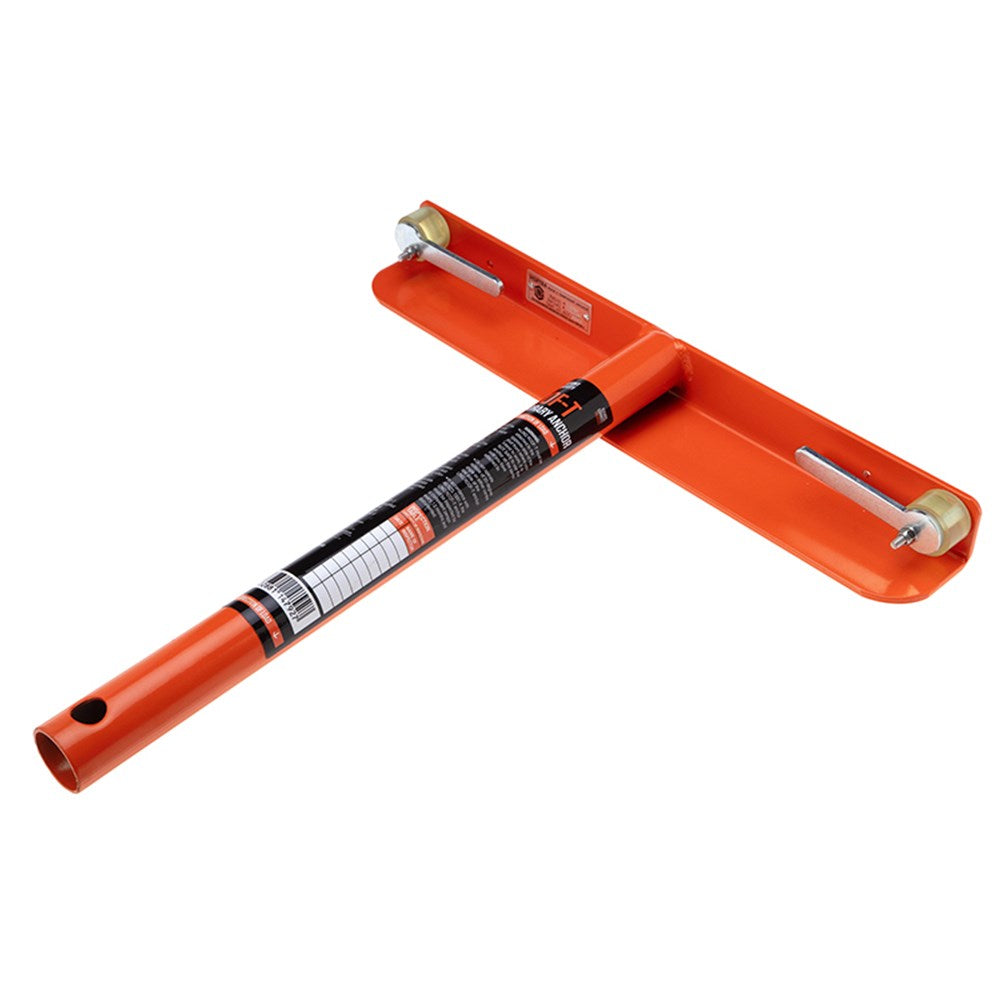

HSRTBA Tetha Roof T Bar Temporary Anchor Plate engineered for extreme workplace situations.  Boasting a minimum breaking strength of 15kN, the range has been developed to be a durable and efficient temporary roof line anchor system.  It is important to ensure that the structure to which any LINQ Tetha Roof T-Bar is installed, has sufficient strength (refer to ASNZS 1891.4) to sustain the applied load.

• Easy to use camlock, no fixing required
• Install within seconds
• Can be used as a temporary anchor point in applications along a roof line where no permanent anchor point exists
• Quick installation and removal
  • Installation should always be conducted by a competent person as described in ASNZS 1891.4
• Suitable for Fall Arrest application on metal roofs
  • To be used on metal clad roofs only
• Conforms to ASNZS 1891.4 requirements
• Conforms to ASNZS 5532:2013
• Passed the corrosion test in accordance with ISO 9227:1990 – 24 hours. LINQ conducts testing over a 48 hour period
