Under Tile Floor Heating Kit (150W/sqm) - 24sqm - Vertical White Thermostat
Item Code: UTCMK150-3600W
Couldn't load pickup availability
About the Product
Under tile floor heating is a popular heating product. This Radiant Heating kit provides everything you need to install this in your own home.
- Suitable for installation directly below tiles
- Ideally suited to living areas which are to be tiled
- Must be used in conjunction with thermostat control
- 10 year warranty on heating cable
NOTE This product can be DIY installed but must be commissioned (connected) by a licenced electrical contractor & connected to an RCD to comply with current AS/NZS 3000 wiring regulations.
We currently supply kits up to 12sqm - Each thermostat can cover up to 24sqm, so you can simply purchase an additional mat to cover your larger area - please contact us if you need further assistance
Each mat is 500mm wide and the length depends on the size mat you choose. When working out how much you need drawing a mudmap of your area and working out how much you need using 500mm strips is the best way to work out what size mat you require
Important: Don't order a mat which is too big for your area as the cable cannot be cut to reduce the size. If between sizes always opt for the smaller of the 2 options

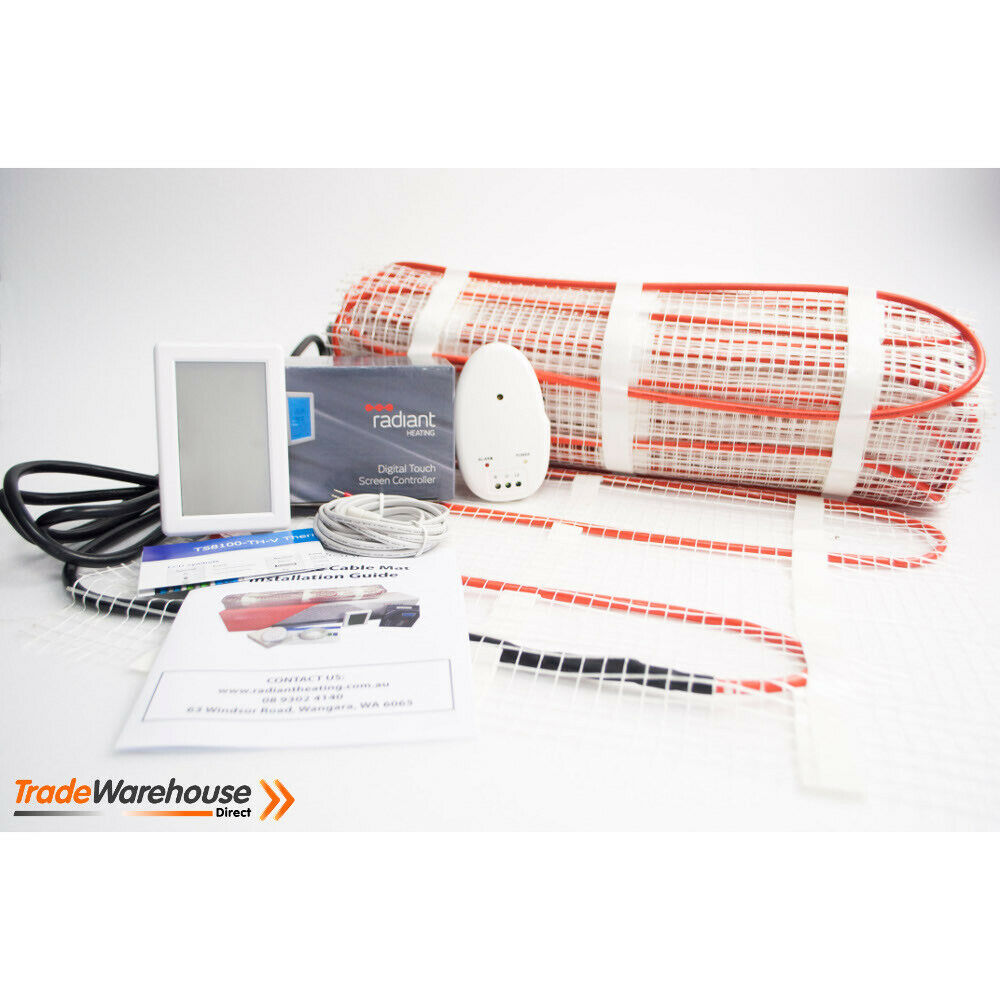

Kit includes
- Under Tile Cable Mat

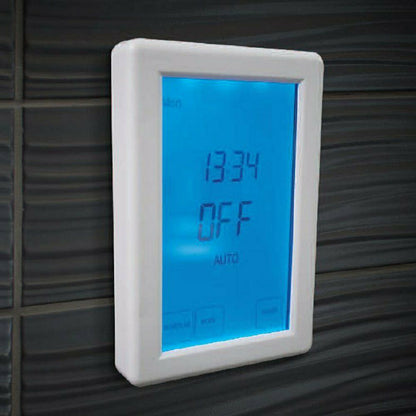

- Touch Screen Floor/Air Sensing Thermostat
- Floor Heating Sensor
- Cable Alarm
- Cloth Duct Tape
- Under Tile Floor Heating DIY Instructions
If you have a wooden sub-floor you will need to lay tile backer board prior to installation of the cable mats, please search 'ThermaSheet' on our website to find this product.
