ThermaSheet Tile Backer Board Fixing Kit for 6, 10, 20, 50mm & Curved Board

ThermaSheet Insulation Tile Backer Board - FIXING KIT enough for fixings 6 boards (one box)

For ThermaSheet application over wooden boards & walls we recommend the Tile Backer Board Fixing Kit

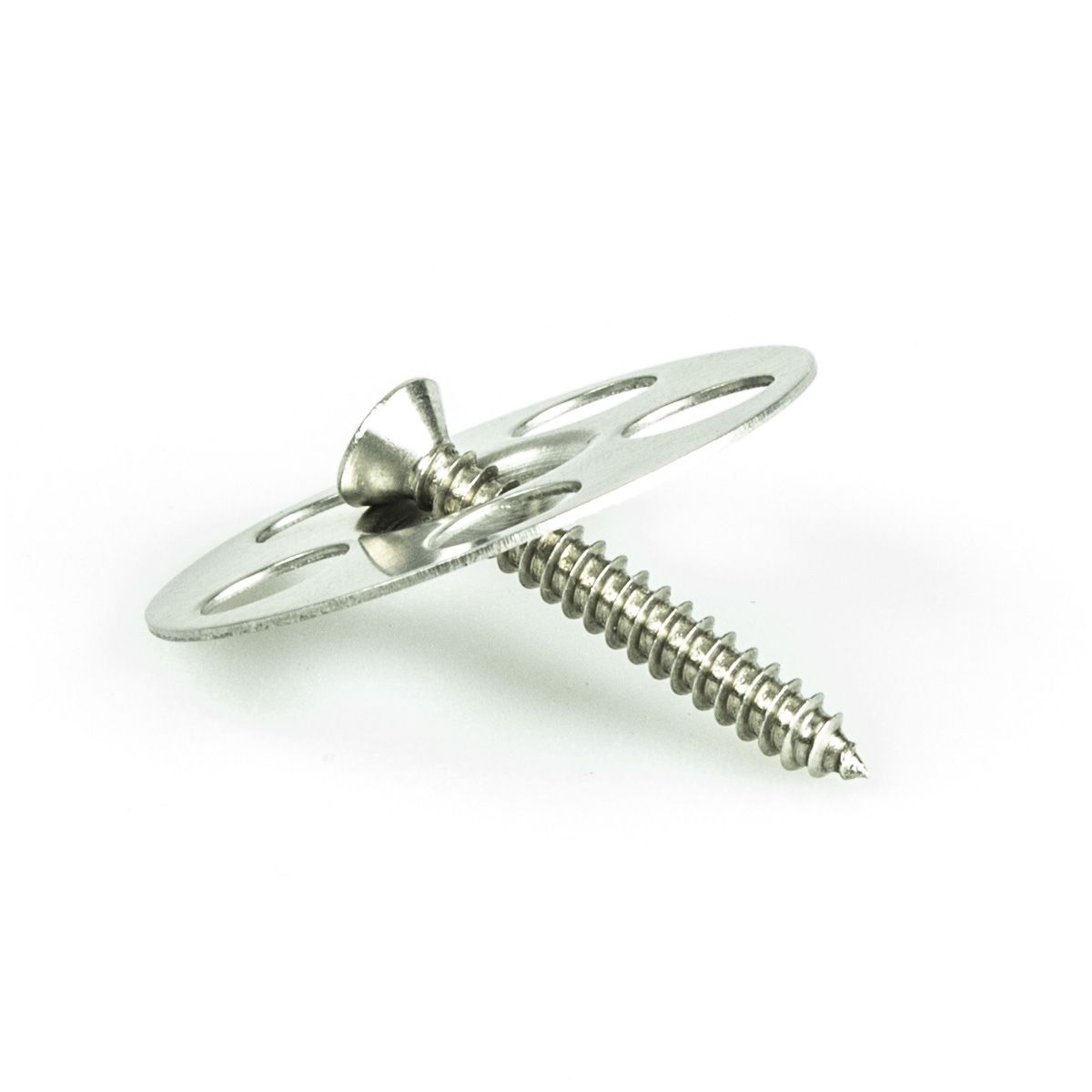

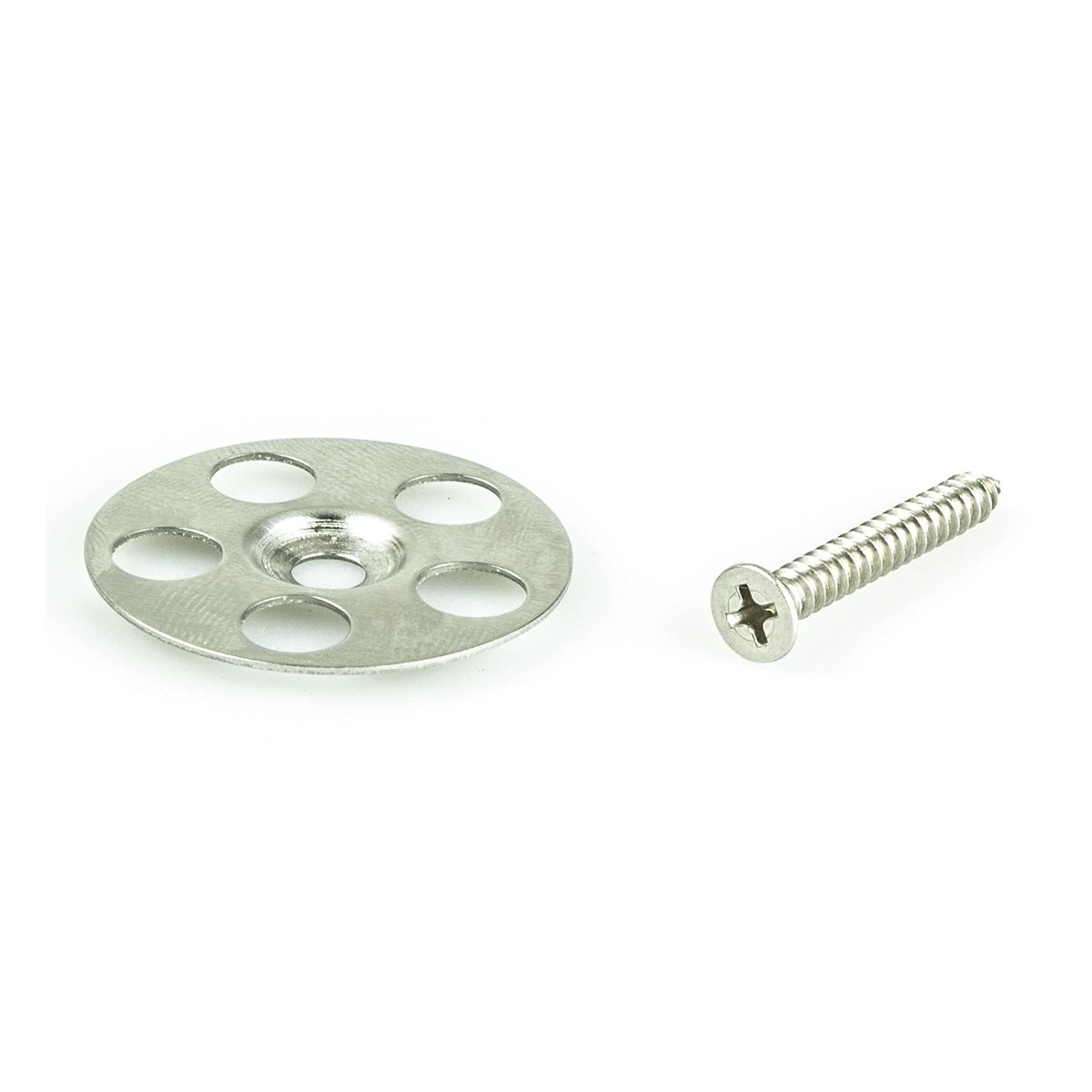

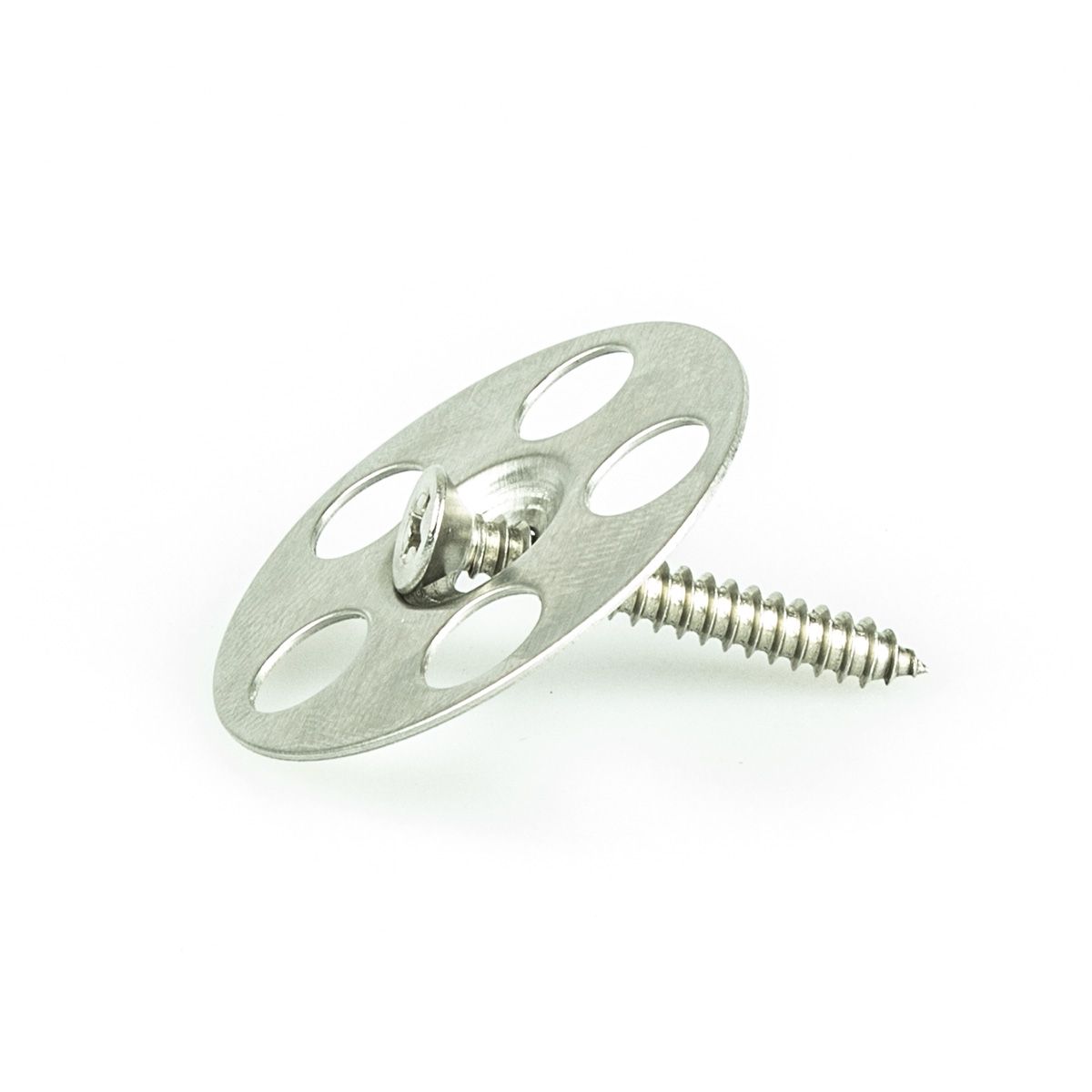

• 50 x Self-Tapping Screws Countersunk Phillips Drive 304 Stainless Steel 6g x 30mm
  • suitable for 6, 10 & 20mm board
• 50 x Washers

Ensure you purchase the correct fixing kit for the Thermasheet board you are installing

• TS-FIXING-50MM 50mm ThermaSheet 8g x 76mm screws
• TS-FIXING-CURVED 30mm CURVED Thermasheet 12g x 65mm

Radiant Australia THERMASHEET Tile Backer Insulation Board:

Available in various sizes & thicknesses, including shower trays & flexible board.

The ThermaSheet tile backer boards have the same insulation & structural values as the popular Marmox & Wedi Board brands.

Manufactured without any CFC or HCFH compounds.

Tile backer insulation boards are commonly used below under floor heating systems as they minimise any downward heat losses, however they can also be used in instead of gyprock wall boards, providing greater insulation properties.

All sold in boxes of 6 boards (except the shower tray - sold singulary) search eBay for the item code below:

• RTTBB-6-1200: 6mm: 1200 x 600mm - 0.72sqm per board (4.32sqm per box)
• RTTBB-10-1200:10mm: 1200 x 600mm - 0.72sqm per board (4.32sqm per box)
• RTTBB-10-2400:10mm: 2400 x 600mm - 1.44sqm per board (8.64sqm per box)
• RTTBB-12-2400: 12mm: 2400 x 600mm - 1.44sqm per board (8.64sqm per box)
• RTTBB-20-1200: 20mm: 1200 x 600mm - 0.72sqm per board (4.32sqm per box)
• RTTBB-50-1200: 50mm: 1200 x 600mm - 0.72sqm per board - (4.32sqm per box)
• RTHBC-30-1250: 30mm FLEXIBLE/CURVED 1250 x 600mm - 0.75sqm per board (4.5sqm per box)
• RTHBC-30-2500: 30mm FLEXIBLE/CURVED 2500 x 600mm - 1.5sqm per board (9sqm per box)
• RST: 25-10mm fall SHOWER TRAY - 1000 x 1500mm - Sold singularly - 1.5sqm per board
• TS-FIXINGS: FIXING KIT - enough for 6 boards - includes stainless steel washers & screws
• RTTBB-30-1200: 30mm: 1200 x 600mm - 0.72sqm per board - SPECIAL ORDER ITEM - please message for lead-time

R-Ratings:

• 6mm - 0.16
• 10mm - 0.28
• 12mm - 0.30
• 20mm - 0.65
• 30mm - 1.1
• 50mm - 1.8
