Radiant Floor Heating In-Screed Cable mat only

Trade Warehouse Direct supply the full range of Radiant Australia under floor heating products, including the cable mat for in-screed installations.

A perfect addition to any part of the house, a warm floor ensures a warm home on those chilly winter mornings.

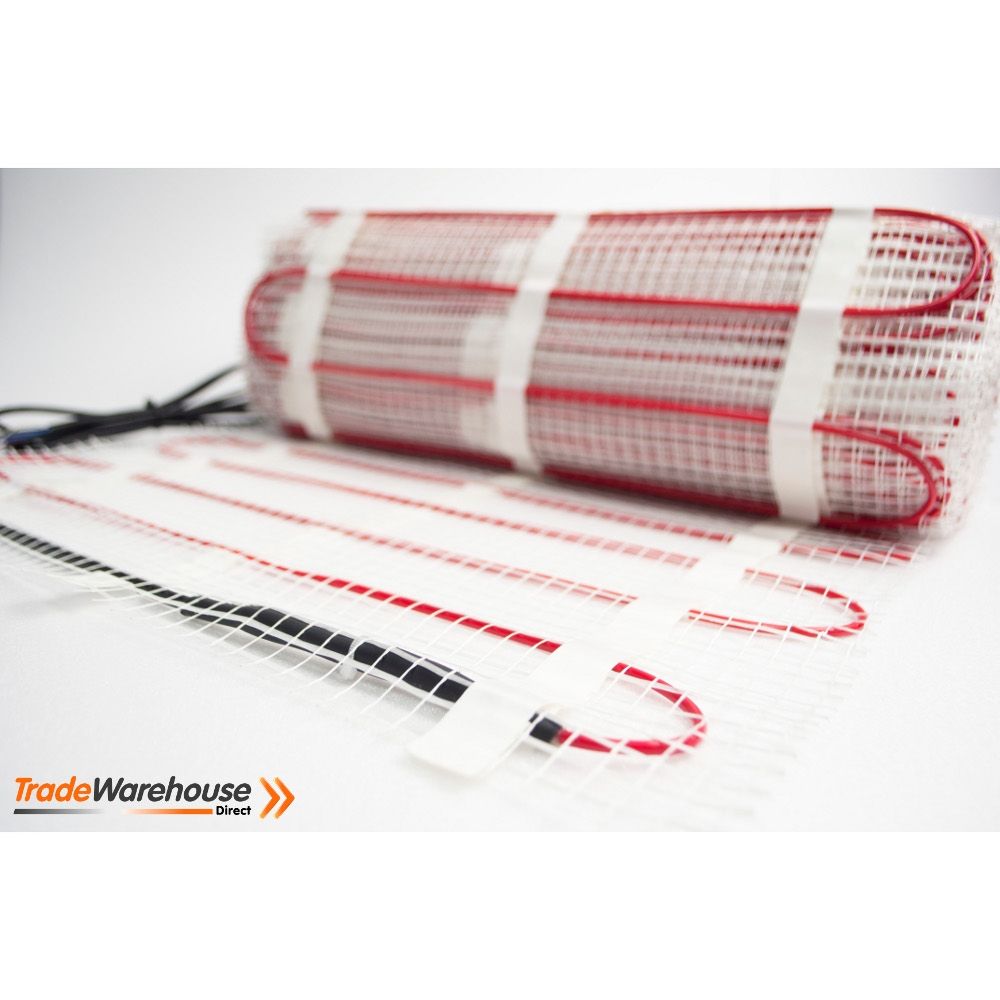

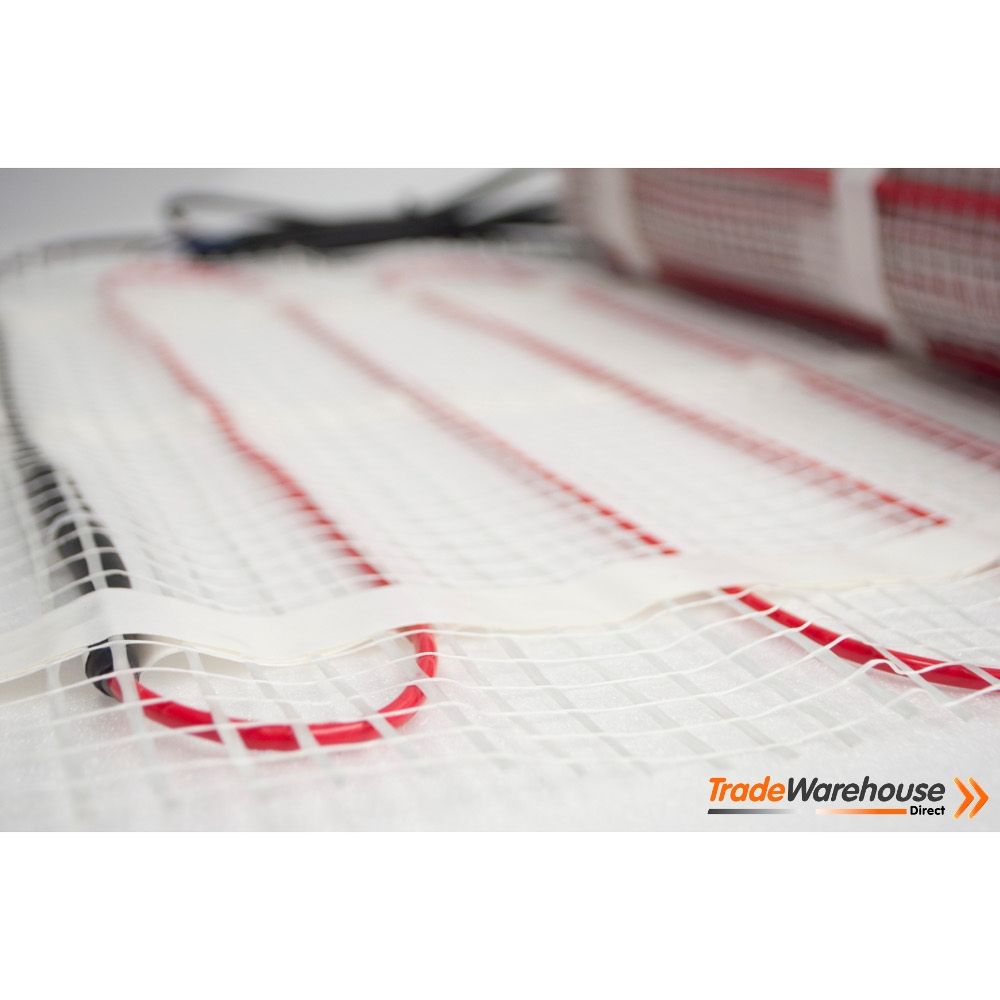

In-Screed Floor Heating Cable - 200W per SQM - mat only - ideal for BATHROOMS

• Suitable for installation below ceramic tiles, stone, marble and vinyl plank floors
• 500mm wide with self-adhesive backing
• 200W per SQM ideally suited to bathrooms
• Must be used in conjunction with thermostat controller
• 10 year warranty on cable
• Cable cannot be cut, but the matting can be, to allow you to turn a corner or reverse direction
• NOTE This product can be DIY installed but must be commissioned (connected) by a licensed electrical contractor and connected to a Thermostat & an RCD to comply with current AS/NZS 3000 wiring regulations.

We highly recommend you purchase the complete KIT, which will include the thermostat, cable alarm, floor sensor & cloth tape - this mat is designed as an add-on to an existing install, or where a kit thermostat is not required

Cable cannot be cut. Purchase a mat to cover your 'free floor' area only i.e. do not include area under sink, toilet, vanity etc.

Mat Size - m2 Typical Floor Coverage - 'free floor' area only  Mat length - linear m x 500mm

• • 1: 1.1-1.5m2 length 2m
  • 1.5: 2.0 - 2.4m2 length3m
  • 2: 2.5 - 2.9m2 length 4m
  • 2.5: 3.0 - 3.4m2 length 5m
  • 3: 3.5 - 4.4m2 length 6m
  • 4: 4.5 - 5.5m2 length 8m
  • 5: 5.6 - 6.5m2 length10m
  • 6: 6.6 - 7.5m2 length12m
  • 7: 7.6 - 8.5m2 length 14m
  • 8: 8.6 - 9.5m2 length16m
  • 10: 10.6 - 11.5m2 length 20m
  • 11: 11.6 - 12.5m2 length 22m
  • 12: 12.6 - 13.5m2 length 24m

Backed by a 10-year warranty (subkect to registration), our price match promise and free delivery, we are the perfect place to buy these products for your new build or renovation.

Calculate your 'free floor' area only i.e. do not include area under sink, toilet, vanity etc. and 50mm away from walls in bathrooms 100mm away from walls in living/kitchen areas.

NOTE This product must be commissioned (connected) by a licensed electrical contractor & connected to a Thermostat & an RCD to comply with current AS/NZS 3000 wiring regulations.
